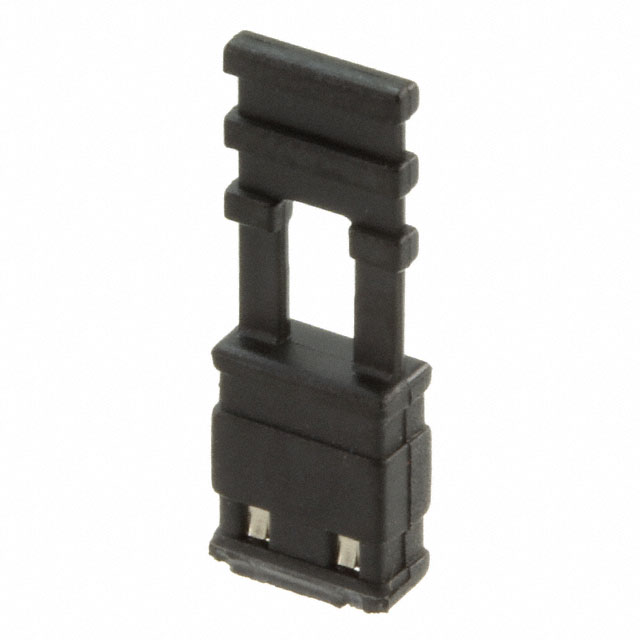

M7682-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M7682-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M7682-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M7682-05 |
|---|---|
| Manufacturer | Harwin |
| Description | 14MM JUMPER SKT W/HNDL BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.147 | $0.138 | $0.118 | $0.10 | $0.096 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.087 | $0.083 | $0.069 | $0.063 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M7682-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 14MM JUMPER SKT W/HNDL BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 353612 pcs | Data sheet | M7680-83 DrawingM20 Series Catalog |
| Category | Connectors, Interconnects | Type | Closed Top, Grip |
| Series | M76 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 952-2883 M7682-05-ND |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.551" (14.00mm) | Gender | Female Sockets |
| Detailed Description | 2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Gold | Contact Finish Thickness | 5.11µin (0.130µm) |
| Contact Finish | Gold | Color | Black |
