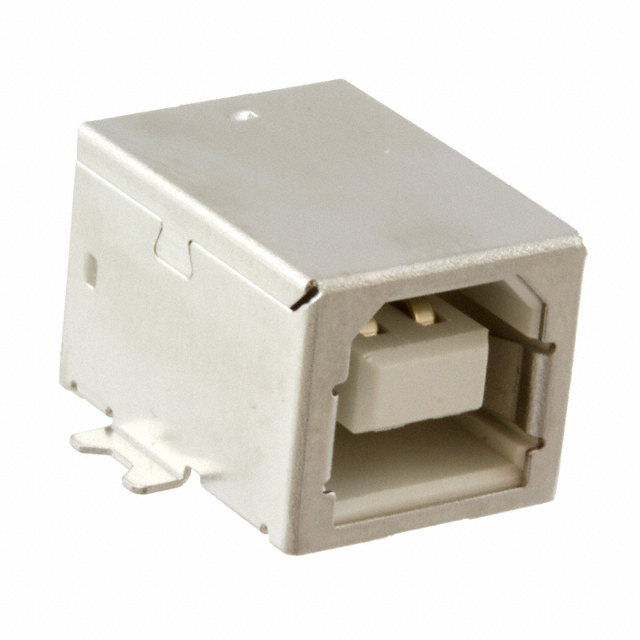

M701-370442
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M701-370442 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M701-370442 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M701-370442 |
|---|---|
| Manufacturer | Harwin |
| Description | 00B B SINGLE SMT HORIZ CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.486 | $0.429 | $0.403 | $0.387 | $0.37 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.336 | $0.302 | $0.269 | $0.244 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M701-370442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 00B B SINGLE SMT HORIZ CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88024 pcs | Data sheet | M701-340442 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 250VAC |
| Termination | Solder | Specifications | USB 2.0 |
| Shielding | Unshielded | Shell/Shielding Material | Brass |
| Series | - | Packaging | Bulk |
| Other Names | 952-1768 M701370442 |
Operating Temperature | - |
| Number of Ports | 1 | Number of Contacts | 4 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 1500 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | White |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Guide, Solder Retention | Detailed Description | USB - B USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle |
| Current Rating | 1.5A | Contact Finish | Gold |
| Connector Type | USB - B |
