M52-040023V1045

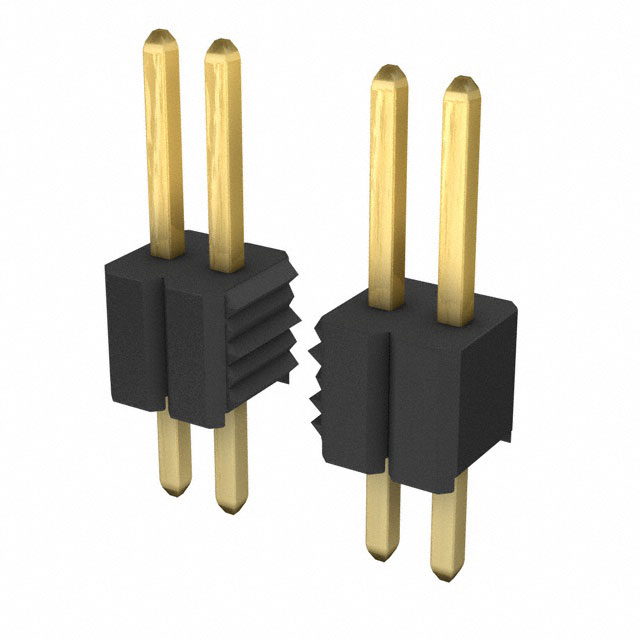

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M52-040023V1045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M52-040023V1045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M52-040023V1045 |
|---|---|
| Manufacturer | Harwin |
| Description | 10 SIL PCT MALE PI HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.464 | $0.41 | $0.353 | $0.289 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.257 | $0.225 | $0.214 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M52-040023V1045 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 10 SIL PCT MALE PI HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93529 pcs | Data sheet | M52-040023Vxx45 DrawingArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | Archer M52 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | 0.346" (8.80mm) |
| Other Names | 952-3512 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.10mm, 8.50mm, 11.00mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
