M52-040000P2545

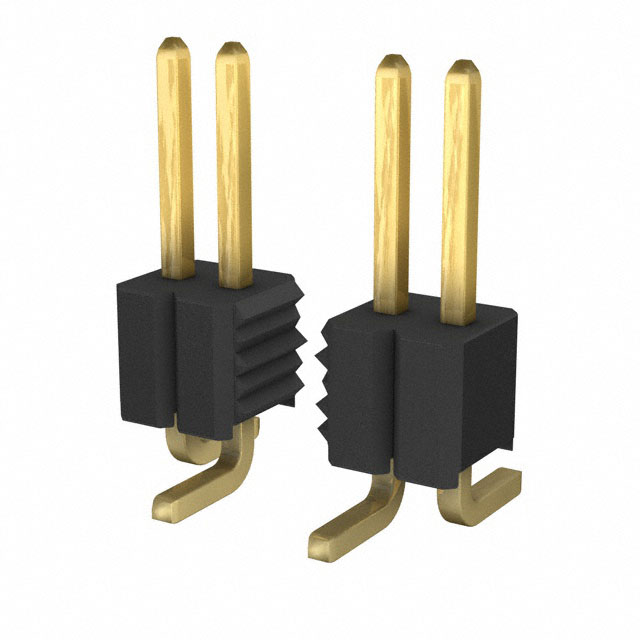

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M52-040000P2545 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M52-040000P2545 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M52-040000P2545 |
|---|---|
| Manufacturer | Harwin |
| Description | 25 SIL SMT MALE PIN HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.156 | $1.11 | $0.925 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.786 | $0.671 | $0.601 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M52-040000P2545 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 25 SIL SMT MALE PIN HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65323 pcs | Data sheet | Archer Series CatalogM52-040000Pxx45 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | Archer M52 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 952-3506 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 25 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.37mm, 9.77mm, 12.27mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.098" (2.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 25 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
