Home > Products > Connectors, Interconnects > Rectangular Connectors - Board In, Direct Wire to > M50-3800542

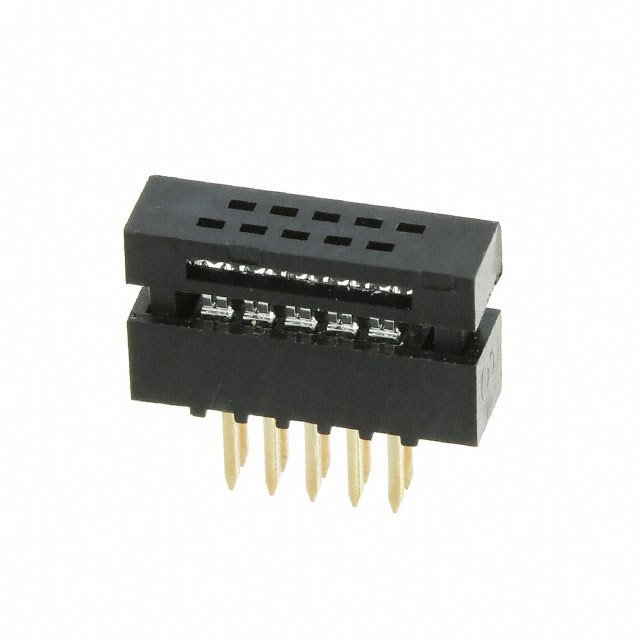

M50-3800542

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3800542 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M50-3800542
Manufacturer	Harwin
Description	1.27 IDC DIP PLUG 10 POSN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	275 pcs	550 pcs	1045 pcs	2530 pcs
~~In Stock~~ 66218 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	55 pcs	110 pcs
	$1.088	$1.045	$0.958	$0.915	$0.871
	$0.762	$0.74	$0.631	$0.588

Product parameter
Data sheet

Product parameter

Part Number	M50-3800542	Manufacturer	Harwin
Description	1.27 IDC DIP PLUG 10 POSN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66218 pcs	Data sheet	M50-380xx42 Drawing M50,M52 Series Spec Sheet Archer Series Catalog
Category	Connectors, Interconnects	Wire Gauge	30 AWG
Series	Archer M50	Row Spacing	0.050" (1.27mm)
Packaging	Tray	Other Names	952-2567 M50-3800542-ND
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	10	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Feed Through
Detailed Description	10 Position Ribbon Cable, DIP Header Connector IDC 30 AWG Through Hole	Contact Finish Thickness	-
Contact Finish	Gold	Connector Type	Ribbon Cable, DIP Header
Color	-	Cable Termination	IDC
Cable Pitch	0.025" (0.64mm)	Board-Side Pitch	0.050" (1.27mm)
