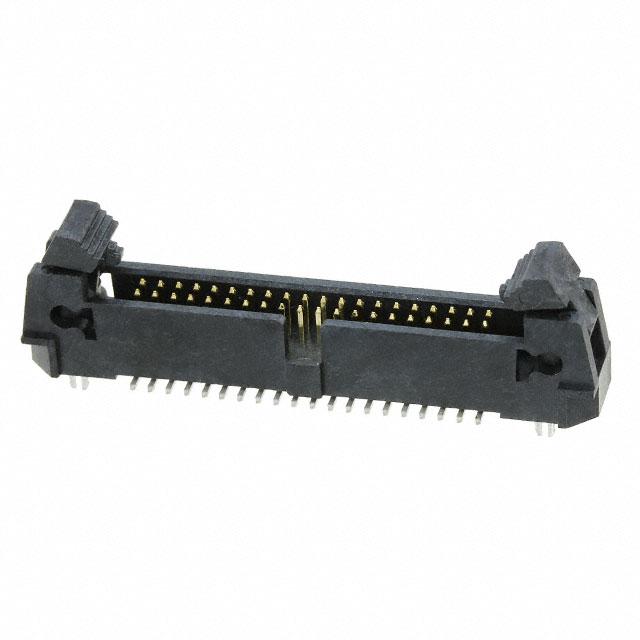

M50-3652042R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3652042R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3652042R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3652042R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 40POS 1.27MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $1.073 | $1.042 | $0.95 | |||
| 1250 pcs | 1750 pcs | 2500 pcs | |||
| $0.889 | $0.858 | $0.827 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3652042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 40POS 1.27MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42254 pcs | Data sheet | M50-365xx42R DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 952-2651-2 M50-3652042R-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.55mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Keying Slot, Pick and Place |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Surface Mount 40 position 0.050" (1.27mm) |
| Current Rating | 1.75A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
