M22-7142042

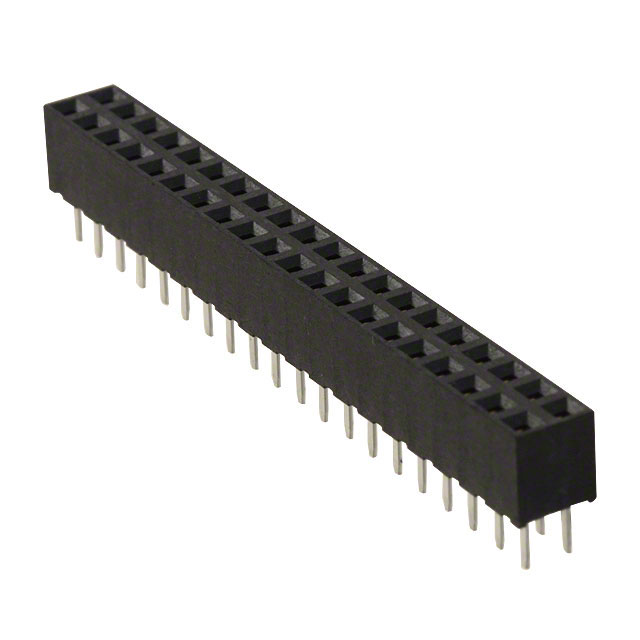

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-7142042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-7142042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-7142042 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RECEPT 2MM VERT AU 40POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 105 pcs | 510 pcs | 1005 pcs |
|---|---|---|---|---|---|
| $1.811 | $1.74 | $1.45 | $1.232 | $1.051 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-7142042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RECEPT 2MM VERT AU 40POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29635 pcs | Data sheet | M22 Series CatalogM22-714yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M22 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-1363-5 M227142042 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm, 6.55mm, 6.8mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Telecommunications |
