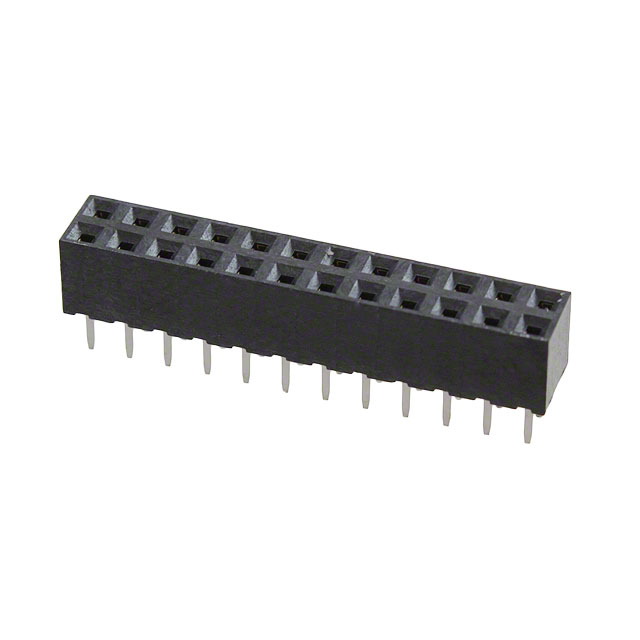

M22-7141242
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-7141242 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-7141242 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-7141242 |
|---|---|
| Manufacturer | Harwin |
| Description | 12X12 POS DIL VERT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.043 | $1.002 | $0.835 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.709 | $0.605 | $0.543 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-7141242 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 12X12 POS DIL VERT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61835 pcs | Data sheet | M22 Series CatalogM22-714yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M22 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-2348 M227141242 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.9mm, 6.9mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 24 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Telecommunications |
