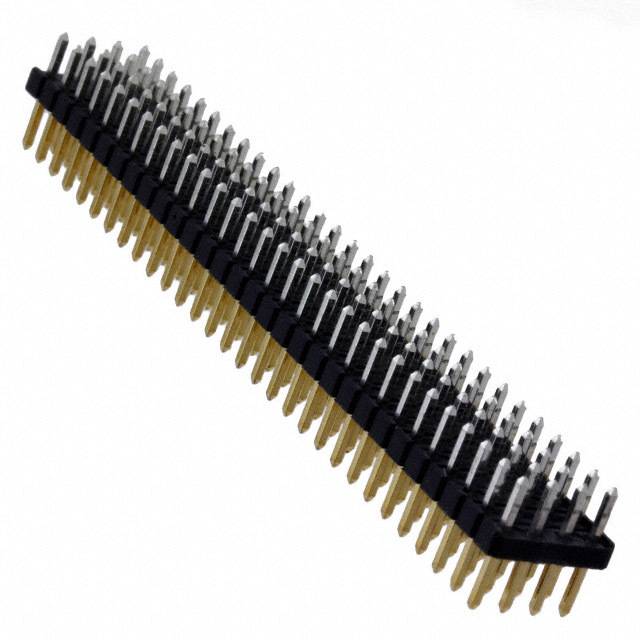

M22-6023042
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-6023042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-6023042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-6023042 |
|---|---|
| Manufacturer | Harwin |
| Description | PC104 PL00 HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.324 | $2.229 | $1.841 | $1.551 | $1.357 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-6023042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | PC104 PL00 HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24139 pcs | Data sheet | M22-60230 DrawingPC/104 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Series | M22 |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-2221 M226023042 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 120 | Number of Columns | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 1A | Contact Layout, Typical | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins |
| Connector Style | PC/104 Plus | Color | Black |
