M22-6003005

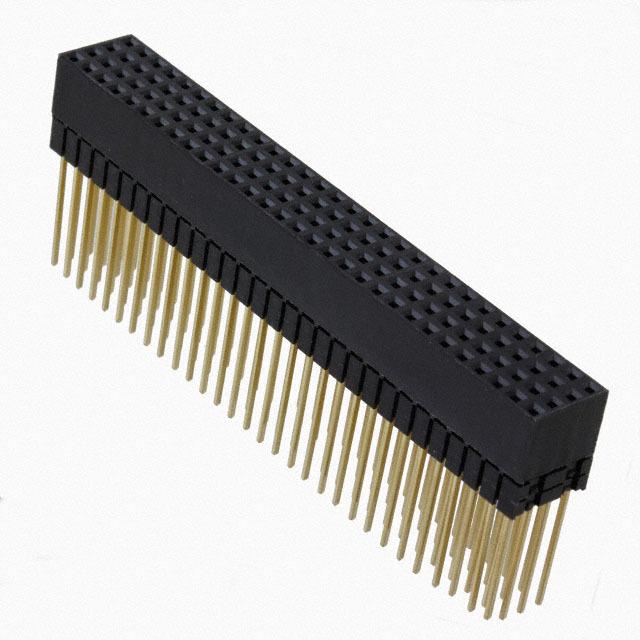

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-6003005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-6003005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-6003005 |
|---|---|
| Manufacturer | Harwin |
| Description | STACKTHROUGH CONNECTOR 2MM PITCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 9 pcs | 18 pcs | 27 pcs | |
|---|---|---|---|---|---|
| $5.384 | $5.237 | $5.092 | $4.801 | ||
| 54 pcs | 108 pcs | 252 pcs | 504 pcs | ||
| $4.656 | $4.365 | $4.074 | $3.928 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-6003005 | Manufacturer | Harwin |
|---|---|---|---|
| Description | STACKTHROUGH CONNECTOR 2MM PITCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9818 pcs | Data sheet | M22-600 DrawingPC/104 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | M22 |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-2299 M226003005 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 120 | Number of Columns | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 1A | Contact Layout, Typical | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Stackthrough, Unkeyed (PC/104) |
| Connector Style | PC/104 Plus | Color | Black |
