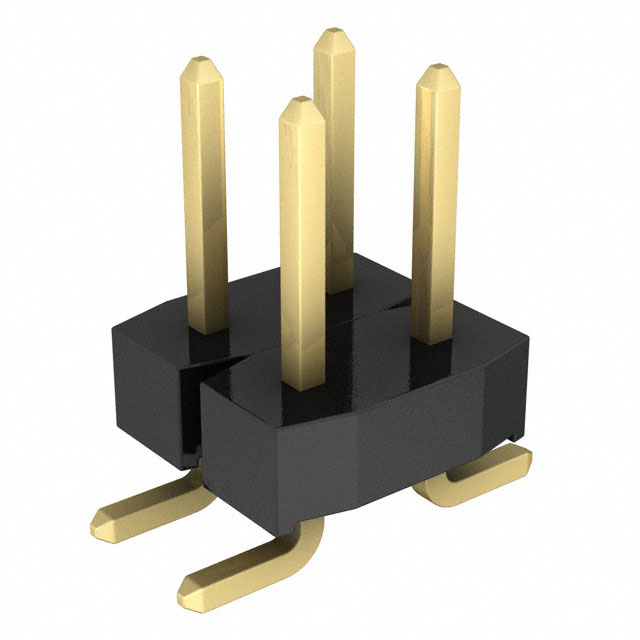

M22-5300205
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-5300205 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-5300205 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-5300205 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 2MM SMD 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 152 pcs | 608 pcs | |
|---|---|---|---|---|---|
| $0.18 | $0.169 | $0.129 | $0.113 | ||
| 1064 pcs | 5016 pcs | 10032 pcs | |||
| $0.093 | $0.082 | $0.076 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-5300205 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 2MM SMD 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 296002 pcs | Data sheet | M22 Series Spec SheetM22 Series CatalogM22-530xx05(R) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | M22 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3170 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 4.8mm, 6.9mm, 9.6mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
