Home > Products > Connectors, Interconnects > Rectangular Connectors - Contacts > M22-3080046

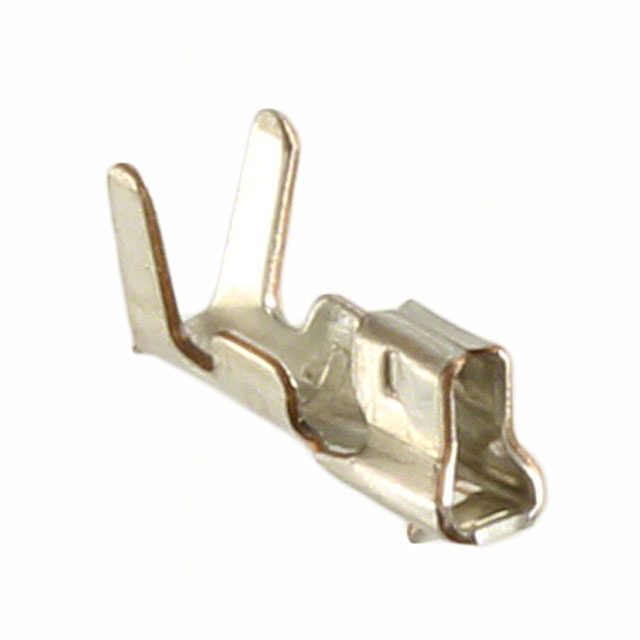

M22-3080046

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-3080046 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M22-3080046
Manufacturer	Harwin
Description	FEMALE CRIMP CONTACT TIN LOOSE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 1233167 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.047	$0.044	$0.033	$0.028	$0.027
	$0.024	$0.023	$0.02	$0.018

Product parameter
Data sheet

Product parameter

Part Number	M22-3080046	Manufacturer	Harwin
Description	FEMALE CRIMP CONTACT TIN LOOSE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1233167 pcs	Data sheet	M22 Series Spec Sheet M22 Series Catalog Z22-020 Instruction Sheet M22-308 Drawing
Category	Connectors, Interconnects	Wire Gauge	24-30 AWG
Type	-	Series	M22
Pin or Socket	Socket	Packaging	Bulk
Other Names	952-2160 M223080046	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Socket Contact Tin 24-30 AWG Crimp	Contact Termination	Crimp
Contact Finish Thickness	100.0µin (2.54µm)	Contact Finish	Tin
