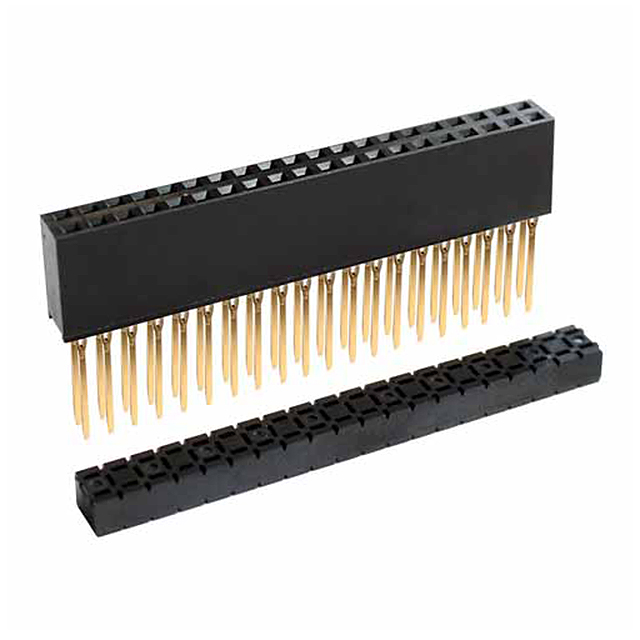

M20-6152005
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-6152005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-6152005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-6152005 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR FMALE .100" 40POS AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 11 pcs | 110 pcs | 506 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $4.374 | $3.976 | $3.38 | $2.883 | $2.644 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-6152005 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR FMALE .100" 40POS AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14279 pcs | Data sheet | PC/104 CatalogM20-615 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit | Series | M20 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-1423-5 M206152005 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Number of Columns | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 1A | Contact Layout, Typical | - |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Stackthrough, Unkeyed + Organizer (PC/104) |
| Connector Style | PC/104 | Color | Black |
