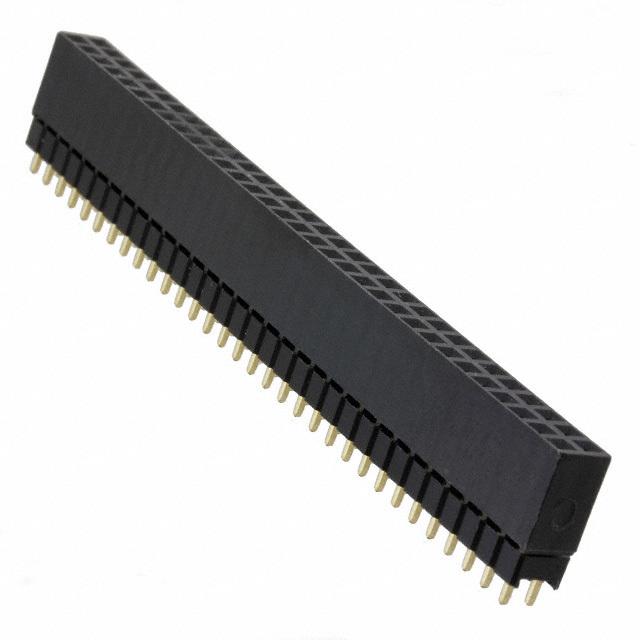

M20-6113245
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-6113245 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-6113245 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-6113245 |
|---|---|
| Manufacturer | Harwin |
| Description | PC/104 NON-STACKTHROUGH CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 105 pcs | 504 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $2.144 | $2.058 | $1.715 | $1.458 | $1.243 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-6113245 | Manufacturer | Harwin |
|---|---|---|---|
| Description | PC/104 NON-STACKTHROUGH CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28991 pcs | Data sheet | PC/104 CatalogM20-611 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | M20 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-2218 M206113245 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 64 | Number of Columns | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 3A | Contact Layout, Typical | - |
| Contact Finish Thickness | 3.00µin (0.076µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Non-Stackthrough, Unkeyed (PC/104) |
| Connector Style | PC/104 | Color | Black |
