Home > Products > Connectors, Interconnects > Terminals - PC Pin Receptacles, Socket Connectors > H3194-05

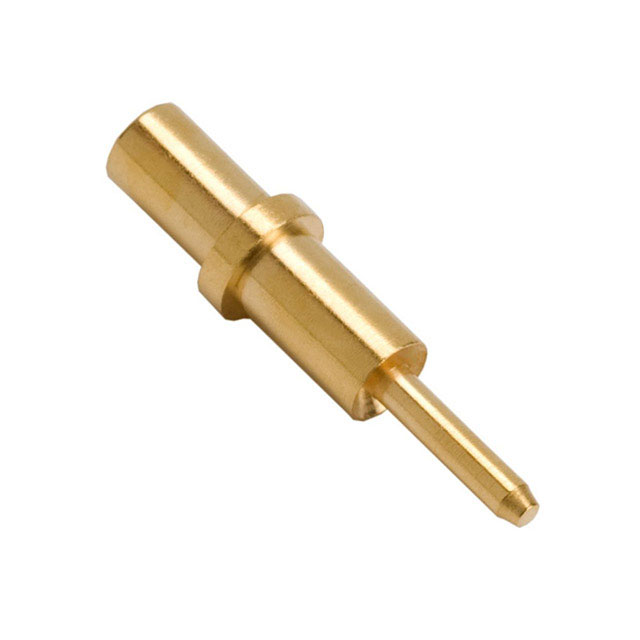

H3194-05

H3194-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3194-05 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number H3194-05
Manufacturer Harwin
Description CONN PIN RCPT .035-.041 SOLDER
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 79396 pcs
Reference Price
(In US Dollars)		10000 pcs
$0.24

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.24

Product parameter

Part Number H3194-05 Manufacturer Harwin
Description CONN PIN RCPT .035-.041 SOLDER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 79396 pcs Data sheet H3194 DrawingPC Sockets Catalog
Category Connectors, Interconnects Termination Solder
Tail Type Standard Tail Tail Diameter -
Socket Depth 0.169" (4.28mm) Series -
Pin Hole Diameter 0.040" (1.02mm) Packaging Bulk
Operating Temperature -55°C ~ 125°C Mounting Hole Diameter 0.093" ~ 0.097" (2.37mm ~ 2.46mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 5 Weeks
Length - Overall 0.526" (13.35mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Force 3.00N ~ 9.00N Flange Diameter 0.125" (3.18mm)
Features - Detailed Description Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) Standard Tail Solder
Contact Material Beryllium Copper Contact Finish Thickness 5.90µin (0.150µm)
Contact Finish Gold Board Thickness -
Accepts Square Pin Size - Accepts Pin Diameter 0.035" ~ 0.041" (0.89mm ~ 1.05mm)
