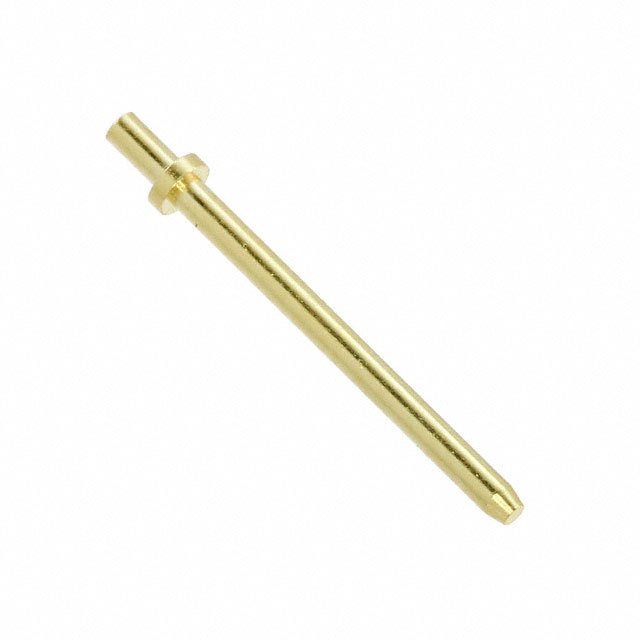

H2170-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2170-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2170-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2170-05 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN CIRC 0.041DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.14 | $0.133 | $0.114 | $0.097 | $0.093 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.084 | $0.08 | $0.067 | $0.061 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2170-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.041DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 393949 pcs | Data sheet | H2170-74 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.041" (1.04mm) Dia | Packaging | Bulk |
| Other Names | 952-2546 H2170-05-ND |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.041" ~ 0.045" (1.04mm ~ 1.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.602" (15.29mm) | Length - Below Flange | 0.082" (2.08mm) |
| Length - Above Flange | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.070" (1.77mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Gold | Board Thickness | 0.063" (1.60mm) |
