Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > H2157-01

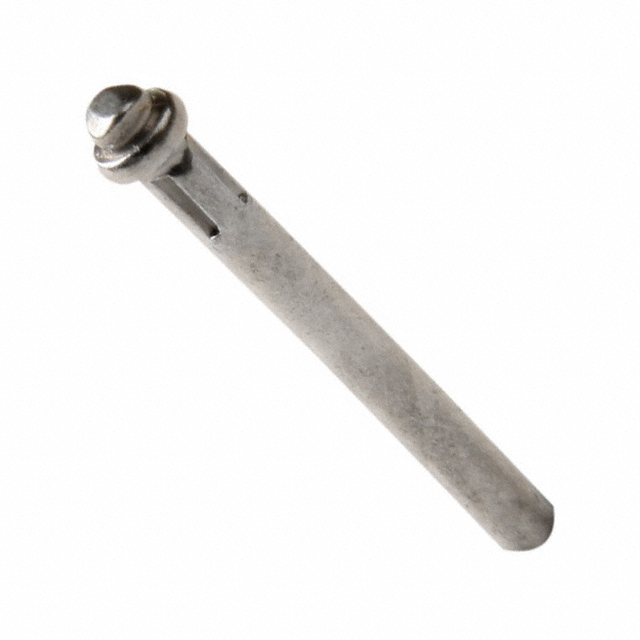

H2157-01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2157-01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H2157-01
Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.050DIA TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4375 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	H2157-01	Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.050DIA TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4375 pcs	Data sheet	H2157 Drawing
Category	Connectors, Interconnects	Termination	Swage
Terminal Type	PC Pin	Terminal Style	Single End
Series	-	Pin Size - Below Flange	-
Pin Size - Above Flange	0.050" (1.27mm) Dia	Packaging	Bulk
Other Names	952-1441 H215701	Mounting Type	Through Hole
Mounting Hole Diameter	0.055" ~ 0.059" (1.40mm ~ 1.50mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Length - Overall	0.504" (12.80mm)
Length - Below Flange	0.030" (0.76mm)	Length - Above Flange	0.449" (11.40mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.088" (2.24mm)
Detailed Description	PC Pin Terminal Connector Through Hole Tin 0.050" (1.27mm) Dia	Contact Material	Brass
Contact Finish Thickness	300.0µin (7.62µm)	Contact Finish	Tin
Board Thickness	0.063" ~ 0.094" (1.60mm ~ 2.39mm)
