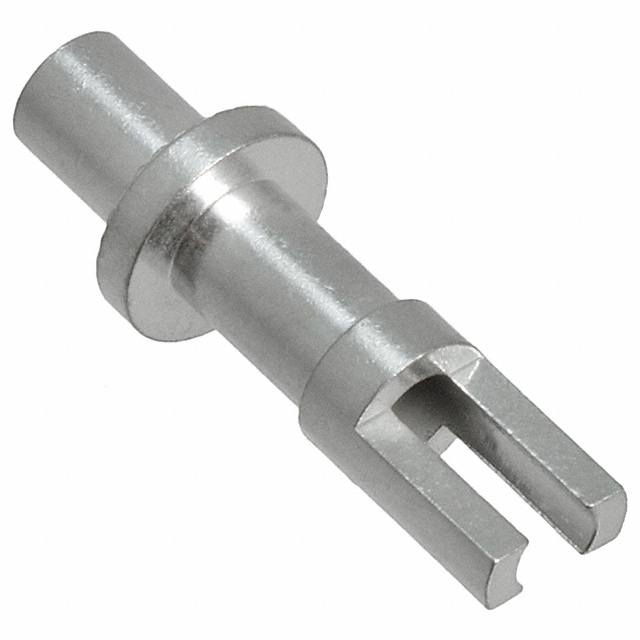

H2039-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2039-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2039-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2039-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=12.7MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.29 | $0.256 | $0.241 | $0.231 | $0.221 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.20 | $0.18 | $0.16 | $0.145 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2039-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=12.7MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 153109 pcs | Data sheet | PCB Hardware CatalogH2039-01 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | 0.122" ~ 0.125" (3.10mm ~ 3.18mm) |
| Staking Side ID | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | Series | - |
| Other Names | 952-2291 H203901 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.126" ~ 0.129" (3.19mm ~ 3.28mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.656" (16.66mm) |
| Length - Below Flange | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) | Length - Above Board | 0.500" (12.70mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.219" (5.56mm) |
| Diameter - Turret Head | 0.151" ~ 0.156" (3.83mm ~ 3.96mm) | Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.500" (12.70mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.126" (3.20mm) |
