H20307RR05Q

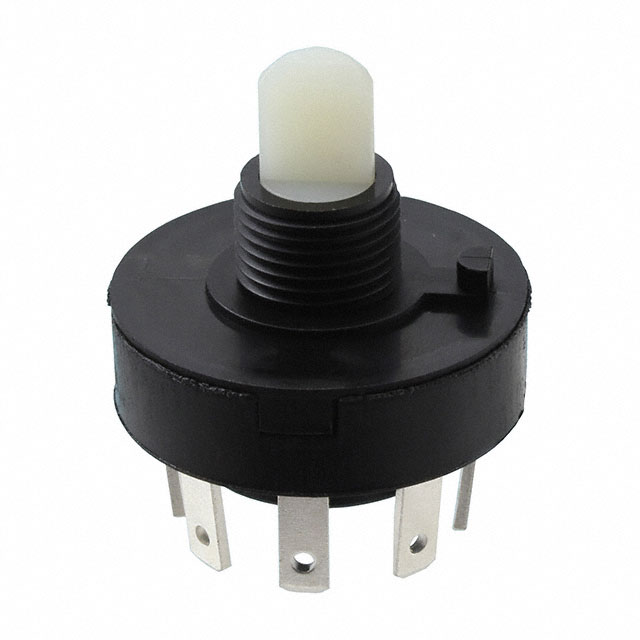

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H20307RR05Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H20307RR05Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H20307RR05Q |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 3POS 12A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.862 | $1.784 | $1.629 | $1.551 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.396 | $1.28 | $1.241 | $1.202 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H20307RR05Q | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 12A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31173 pcs | Data sheet | H Series Rotary Datasheet |
| Category | Switches | Voltage Rating - DC | 125V |
| Voltage Rating - AC | 125V | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Series | H | Panel Cutout Dimensions | Circular - 9.78mm Dia |
| Other Names | *H20307RR05Q CKN10958 H20307RR05Q-ND |
Operating Force | - |
| Number of Positions | 3 | Number of Poles per Deck | 2 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 3 Position DP3T 12A (AC), 1A (DC) 125VAC Panel Mount |
| Depth Behind Panel | 15.25mm | Current Rating | 12A (AC), 1A (DC) |
| Contact Timing | Not Specified | Contact Material | Copper |
| Contact Finish | Silver | Circuit per Deck | DP3T |
| Angle of Throw | 45° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 7.29mm |
