Home > Products > Connectors, Interconnects > Sockets for ICs, Transistors > D01-9970642

D01-9970642

D01-9970642

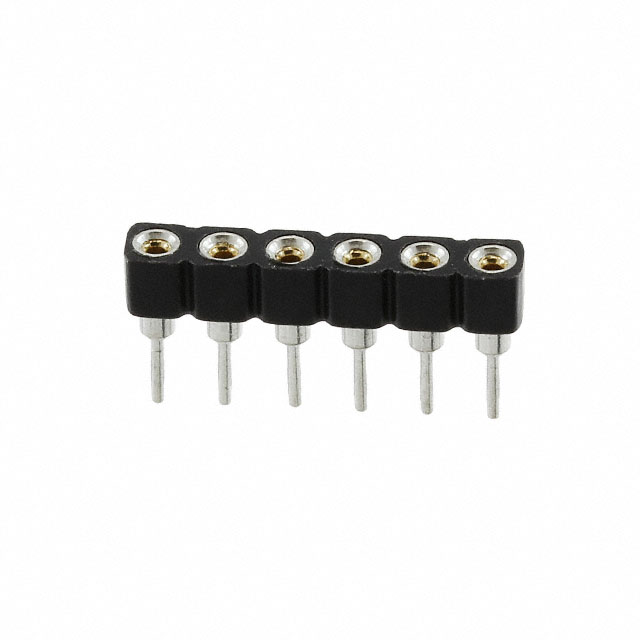

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D01-9970642 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number D01-9970642
Manufacturer Harwin
Description CONN SOCKET SIP 6POS GOLD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 248468 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.206$0.193$0.148$0.129
2000 pcs6000 pcs10000 pcs
$0.103$0.093$0.087

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.206

Product parameter

Part Number D01-9970642 Manufacturer Harwin
Description CONN SOCKET SIP 6POS GOLD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 248468 pcs Data sheet D01-997xx42 DrawingPC Sockets Catalog
Category Connectors, Interconnects Type SIP
Termination Post Length 0.125" (3.18mm) Termination Solder
Series D01-997 Pitch - Post 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Other Names 952-1986
D019970642		 Operating Temperature -55°C ~ 125°C
Number of Positions or Pins (Grid) 6 (1 x 6) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled Features -
Current Rating 1A Contact Resistance 10 mOhm
Contact Material - Post Brass Contact Material - Mating Beryllium Copper
Contact Finish Thickness - Post 196.9µin (5.00µm) Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin Contact Finish - Mating Gold
