Home > Products > Connectors, Interconnects > Sockets for ICs, Transistors > D01-9952042

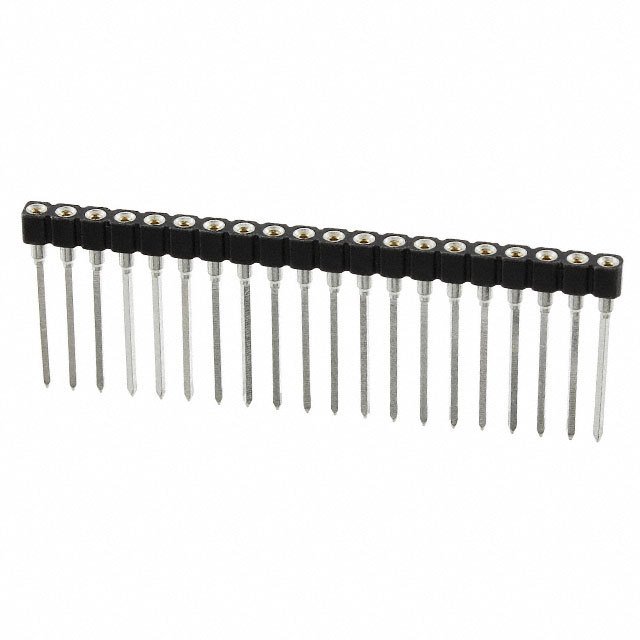

D01-9952042

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D01-9952042 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D01-9952042
Manufacturer	Harwin
Description	CONN SOCKET SIP 20POS GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 35839 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	125 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$1.592	$1.528	$1.274	$1.083	$0.923

Product parameter
Data sheet

Product parameter

Part Number	D01-9952042	Manufacturer	Harwin
Description	CONN SOCKET SIP 20POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35839 pcs	Data sheet	D01-995xx42 Drawing PC Sockets Catalog
Category	Connectors, Interconnects	Type	SIP
Termination Post Length	0.510" (12.95mm)	Termination	Wire Wrap
Series	D01-995	Pitch - Post	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Other Names	952-1898 D019952042	Operating Temperature	-55°C ~ 125°C
Number of Positions or Pins (Grid)	20 (1 x 20)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Features	-
Current Rating	1A	Contact Resistance	10 mOhm
Contact Material - Post	Brass	Contact Material - Mating	Beryllium Copper
Contact Finish Thickness - Post	196.9µin (5.00µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
