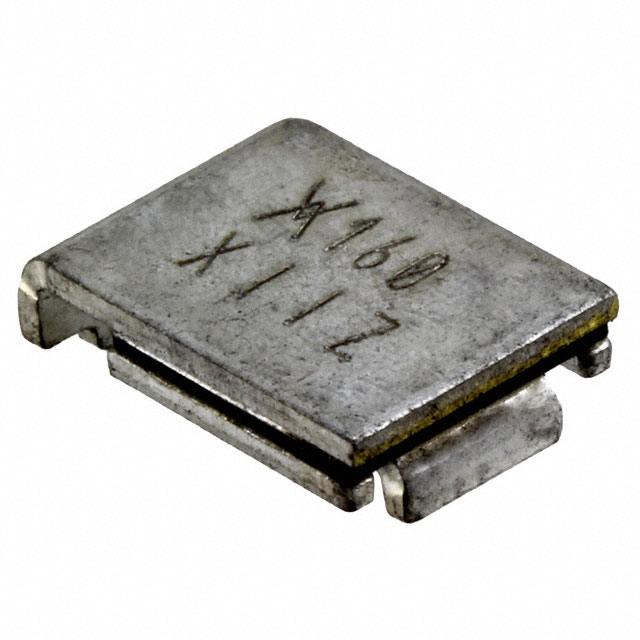

SMDH160-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMDH160-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload SMDH160-2 Details in PDFSee Product Specifications for product details.
Buy SMDH160-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMDH160-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 1.6A 2SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.29 | $0.28 | $0.272 | $0.229 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.19 | $0.172 | $0.147 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMDH160-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 1.6A 2SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 164238 pcs | Data sheet | SMDH160 SpecPolySwitch, SMD Catalog |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 15s |
| Thickness (Max) | 0.118" (3.00mm) | Size / Dimension | 0.343" L x 0.250" W (8.70mm x 6.36mm) |
| Series | PolySwitch®, SMD | Resistance - Post Trip (R1) (Max) | 150 mOhms |
| Resistance - Initial (Ri) (Min) | 50 mOhms | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | 2-SMD |
| Other Names | F7705CT F7705CT-ND SMDH160-2CT |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 1.6A Ih Surface Mount 2-SMD | Current - Trip (It) | 3.2A |
| Current - Max | 70A | Current - Hold (Ih) (Max) | 1.6A |
| Approvals | CSA, TUV, UL |
