SMDH120-2

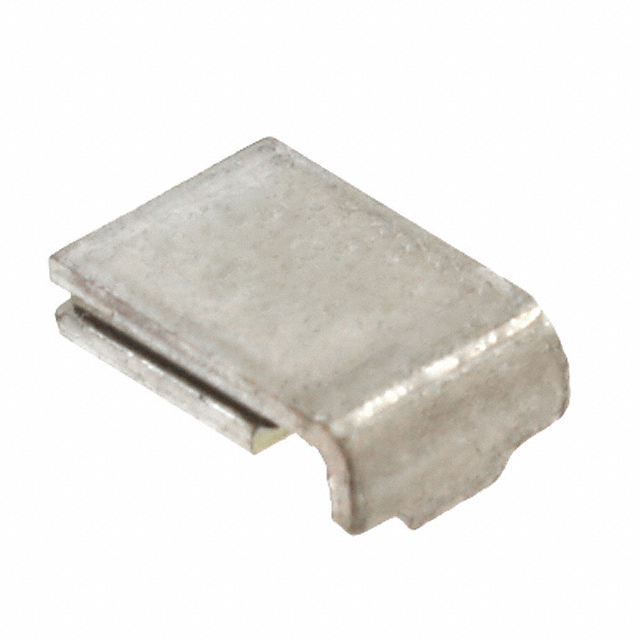

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMDH120-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload SMDH120-2 Details in PDFSee Product Specifications for product details.
Buy SMDH120-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMDH120-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 1.2A 2SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.265 | $0.257 | $0.249 | $0.21 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.174 | $0.158 | $0.135 | $0.119 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMDH120-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 1.2A 2SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 178912 pcs | Data sheet | PolySwitch, SMD CatalogSMDH120 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 2s |
| Thickness (Max) | 0.118" (3.00mm) | Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Series | PolySwitch®, SMD | Resistance - Initial (Ri) (Min) | 150 mOhms |
| Ratings | - | Packaging | Original-Reel® |
| Package / Case | 2-SMD | Other Names | SMDH120-2DKR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | - | Detailed Description | Polymeric PTC Resettable Fuse 16V 1.2A Ih Surface Mount 2-SMD |
| Current - Trip (It) | 2.3A | Current - Max | 50A |
| Current - Hold (Ih) (Max) | 1.2A | Approvals | CSA, TUV, UL |
