SESD1004Q4UG-0030-088

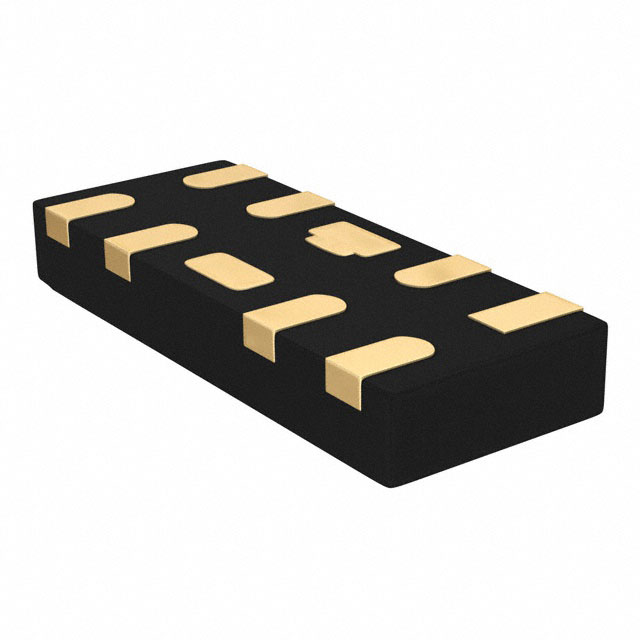

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SESD1004Q4UG-0030-088 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SESD1004Q4UG-0030-088 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SESD1004Q4UG-0030-088 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | TVS DIODE 7V 13V 10XDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25000 pcs | ||||
|---|---|---|---|---|---|
| $0.13 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SESD1004Q4UG-0030-088 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | TVS DIODE 7V 13V 10XDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185944 pcs | Data sheet | SESD Series, Enhanced ESD Diode Arrays |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Clamping (Max) @ Ipp | 13V (Typ) | Voltage - Breakdown (Min) | 8.8V (Typ) |
| Unidirectional Channels | 4 | Type | Zener |
| Supplier Device Package | 1004/10DFN (2.5x1.0) | Series | SESD, SPA® |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Tape & Reel (TR) | Package / Case | 10-XFDFN |
| Other Names | F6717TR F6717TR-ND RF3923-000 RF3923000 SESD1004Q4UG-0030-088TR SESD1004Q4UG-0030088 SESD1004Q4UG0030-088 SESD1004Q4UG0030088 |
Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 2.2A (8/20µs) | Capacitance @ Frequency | 0.3pF @ 3GHz |
| Applications | HDMI |
