SESD0402Q2UG-0020-090

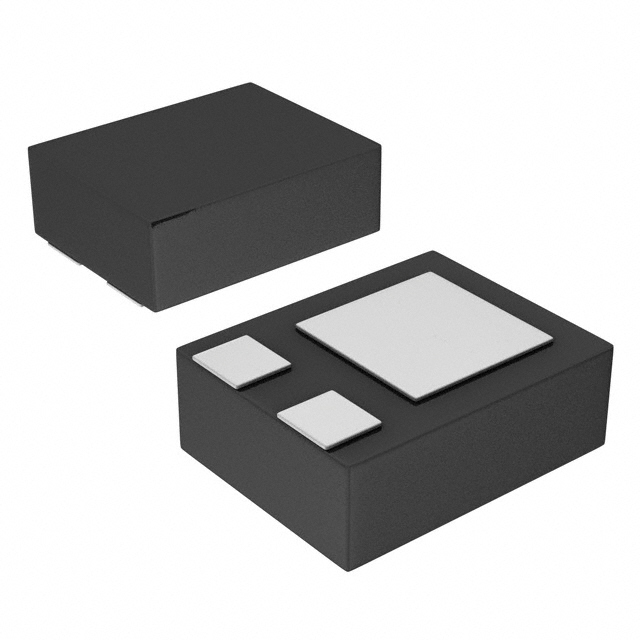

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SESD0402Q2UG-0020-090 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SESD0402Q2UG-0020-090 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SESD0402Q2UG-0020-090 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | TVS DIODE 7V 9.2V 0402/3DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50000 pcs | ||||
|---|---|---|---|---|---|
| $0.10 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SESD0402Q2UG-0020-090 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | TVS DIODE 7V 9.2V 0402/3DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196666 pcs | Data sheet | SESD Series, Ultra Low Cap Diode Arrays |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) | Voltage - Breakdown (Min) | 9V (Typ) |
| Unidirectional Channels | 2 | Type | Zener |
| Supplier Device Package | 0402/3DFN (0.6x1) | Series | Automotive, AEC-Q101, SESD, SPA® |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Tape & Reel (TR) | Package / Case | 3-XFDFN |
| Other Names | F6718TR F6718TR-ND RF2196-000 RF2196-000TR RF2196-000TR-ND RF2946-000 RF2946000 SESD0402Q2UG-0020-090TR SESD0402Q2UG-0020090 SESD0402Q2UG0020-090 SESD0402Q2UG0020090 |
Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | Capacitance @ Frequency | 0.2pF @ 3GHz |
| Applications | Automotive, HDMI |
