S8055RTP

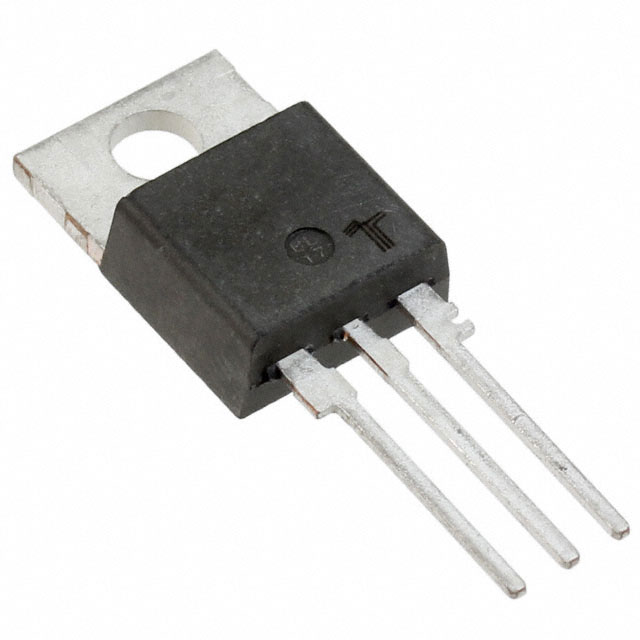

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S8055RTP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S8055RTP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S8055RTP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | SCR NON-SENS 800V 55A TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.448 | $1.293 | $1.163 | $1.06 | $0.957 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.858 | $0.724 | $0.688 | $0.662 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | S8055RTP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SCR NON-SENS 800V 55A TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52874 pcs | Data sheet | Sxx55x Series DatasheetPacking OptionsSCR Product Guide, 1A-70ALead Form Dimensions |
| Category | Discrete Semiconductor Products | Voltage - On State (Vtm) (Max) | 1.8V |
| Voltage - Off State | 800V | Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Supplier Device Package | TO-220 Non-Isolated Tab | Series | - |
| SCR Type | Standard Recovery | Packaging | Tube |
| Package / Case | TO-220-3 | Other Names | F5457 S8055RTP-ND |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | SCR 800V 55A Standard Recovery Through Hole TO-220 Non-Isolated Tab |
| Current - On State (It (RMS)) (Max) | 55A | Current - On State (It (AV)) (Max) | 35A |
| Current - Off State (Max) | 20µA | Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| Current - Hold (Ih) (Max) | 60mA | Current - Gate Trigger (Igt) (Max) | 40mA |
