S8055MTP

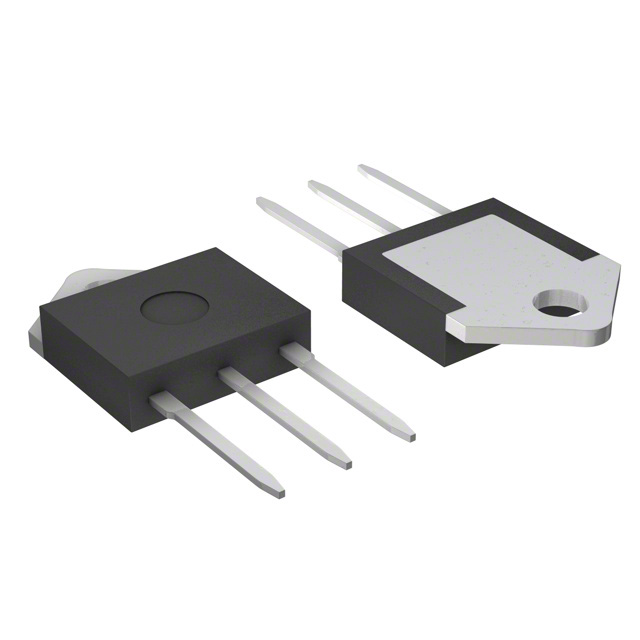

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S8055MTP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S8055MTP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S8055MTP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | SCR 800V 55A NON-ISOLATE TO218AC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.121 | $1.895 | $1.706 | $1.554 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.402 | $1.258 | $1.061 | $1.008 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | S8055MTP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SCR 800V 55A NON-ISOLATE TO218AC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29967 pcs | Data sheet | Sxx55x Series DatasheetPacking OptionsSCR Product Guide, 1A-70ALead Form Dimensions |
| Category | Discrete Semiconductor Products | Voltage - On State (Vtm) (Max) | 1.8V |
| Voltage - Off State | 800V | Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Supplier Device Package | TO-218 Non-Isolated Tab | Series | - |
| SCR Type | Standard Recovery | Packaging | Tube |
| Package / Case | TO-218-3, TO-218AC | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR 800V 55A Standard Recovery Through Hole TO-218 Non-Isolated Tab | Current - On State (It (RMS)) (Max) | 55A |
| Current - On State (It (AV)) (Max) | 35A | Current - Off State (Max) | 20µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A | Current - Hold (Ih) (Max) | 60mA |
| Current - Gate Trigger (Igt) (Max) | 40mA |
