RHEF750-AP

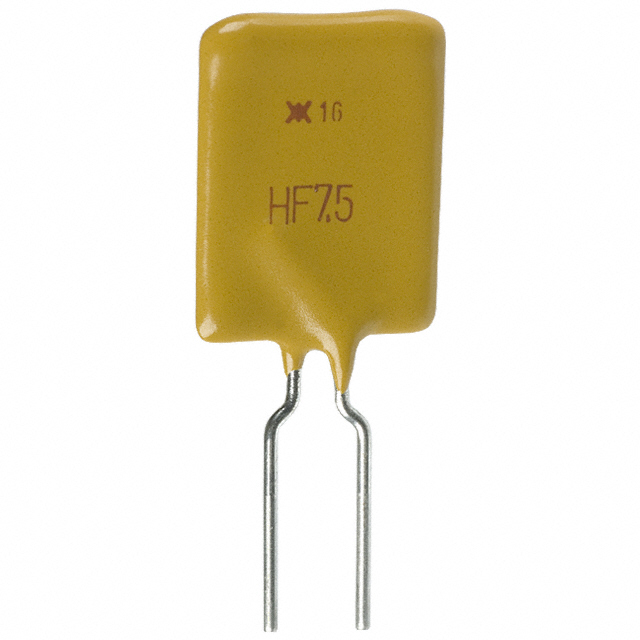

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RHEF750-AP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RHEF750-AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RHEF750-AP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 7.5A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RHEF750-AP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 7.5A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4412 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRHEF750 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 7s |
| Thickness (Max) | - | Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Series | PolySwitch®, RHEF | Resistance - Post Trip (R1) (Max) | 22 mOhms |
| Resistance - Initial (Ri) (Min) | 9.4 mOhms | Ratings | - |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Disc |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.925" (23.50mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 7.5A Ih Through Hole Radial, Disc | Current - Trip (It) | 13.1A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 7.5A |
| Approvals | CSA, TUV, UL |
