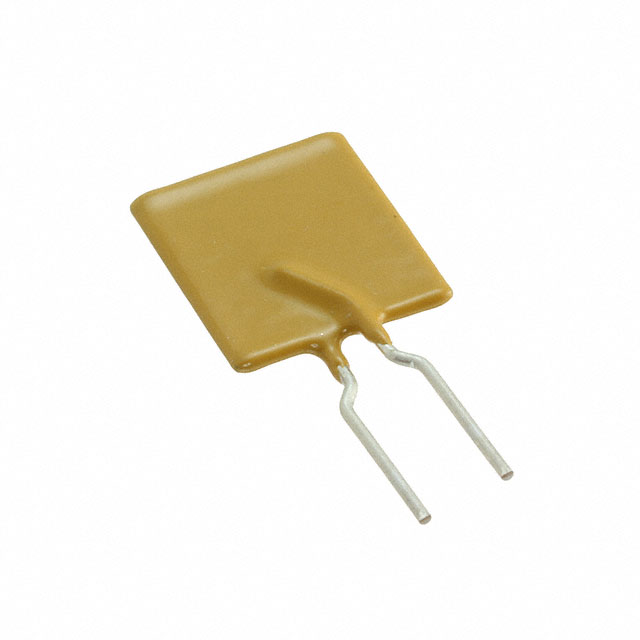

RHEF700
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RHEF700 with confidence from Components-World.HK, 1 Year Warranty
Dowload RHEF700 Details in PDFSee Product Specifications for product details.
Buy RHEF700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RHEF700 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 7A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.167 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RHEF700 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 7A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118885 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRHEF700 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 7s |
| Thickness (Max) | - | Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Series | PolySwitch®, RHEF | Resistance - Post Trip (R1) (Max) | 25 mOhms |
| Resistance - Initial (Ri) (Min) | 10 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF3316-000 RHEF700HF |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.862" (21.90mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 7A Ih Through Hole Radial, Disc | Current - Trip (It) | 13A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 7A |
| Approvals | CSA, TUV, UL |
