RHEF1500

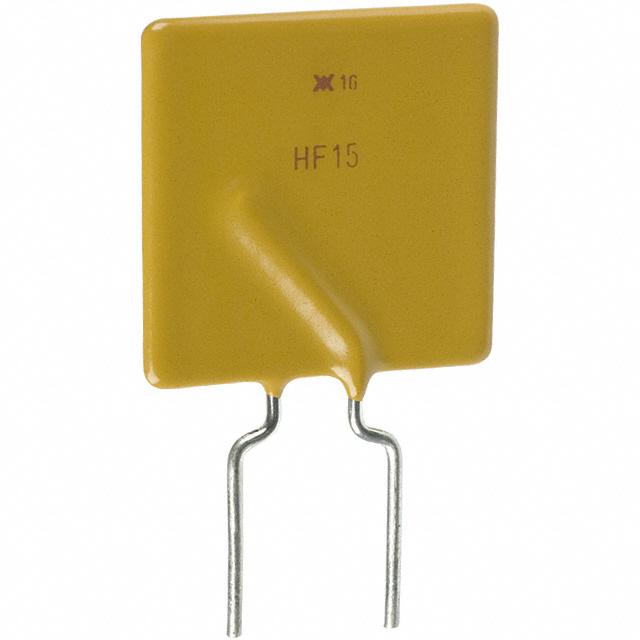

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RHEF1500 with confidence from Components-World.HK, 1 Year Warranty
Dowload RHEF1500 Details in PDFSee Product Specifications for product details.
Buy RHEF1500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RHEF1500 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 15A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.504 | $0.461 | $0.419 | $0.329 | ||
| 1000 pcs | 2000 pcs | 5000 pcs | |||
| $0.284 | $0.268 | $0.26 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RHEF1500 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 15A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75833 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRHEF1500 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 20s |
| Thickness (Max) | - | Size / Dimension | 0.925" L x 0.142" W (23.50mm x 3.60mm) |
| Series | PolySwitch®, RHEF | Resistance - Post Trip (R1) (Max) | 9.2 mOhms |
| Resistance - Initial (Ri) (Min) | 3.2 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | F34429-000 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Lead Spacing | 0.400" (10.15mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.130" (28.70mm) | Detailed Description | Polymeric PTC Resettable Fuse 16V 15A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 28A | Current - Max | 100A |
| Current - Hold (Ih) (Max) | 15A | Approvals | CSA, TUV, UL |
