RHEF1400

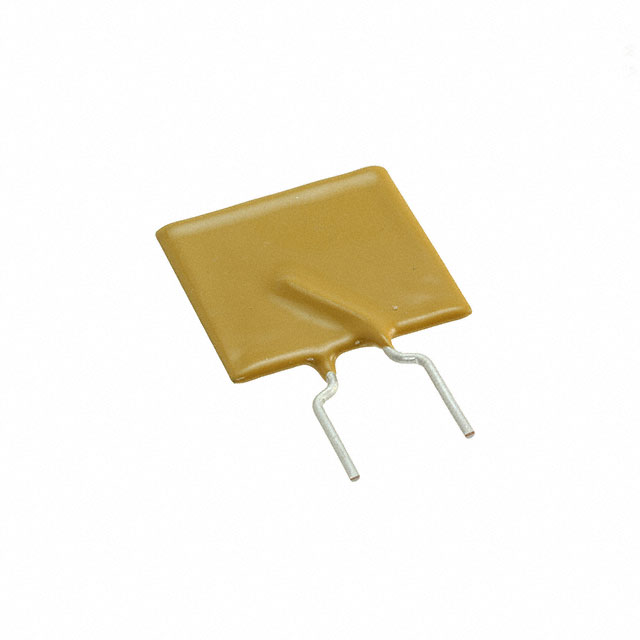

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RHEF1400 with confidence from Components-World.HK, 1 Year Warranty
Dowload RHEF1400 Details in PDFSee Product Specifications for product details.
Buy RHEF1400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RHEF1400 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 14A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.555 | $0.537 | $0.502 | $0.415 | $0.346 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.338 | $0.286 | $0.251 | $0.225 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RHEF1400 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 14A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84274 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRHEF1400 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 13s |
| Thickness (Max) | - | Size / Dimension | 0.925" L x 0.142" W (23.50mm x 3.60mm) |
| Series | PolySwitch®, RHEF | Resistance - Post Trip (R1) (Max) | 9 mOhms |
| Resistance - Initial (Ri) (Min) | 3 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF3326-000 RHEF1400HF |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.126" (28.60mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 14A Ih Through Hole Radial, Disc | Current - Trip (It) | 27A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 14A |
| Approvals | CSA, TUV, UL |
