RGEF800-1

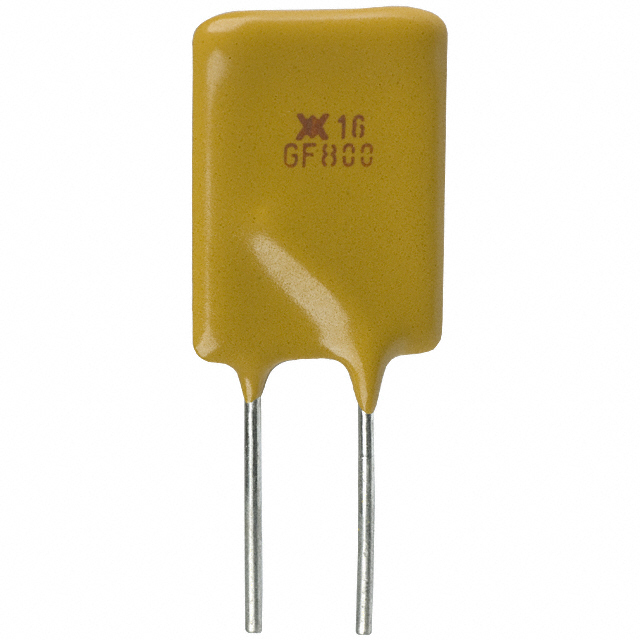

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGEF800-1 with confidence from Components-World.HK, 1 Year Warranty
Dowload RGEF800-1 Details in PDFSee Product Specifications for product details.
Buy RGEF800-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGEF800-1 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 8A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.301 | $0.293 | $0.274 | $0.226 | $0.189 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.184 | $0.156 | $0.137 | $0.123 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGEF800-1 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 8A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159445 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRGEF800-1 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 5s |
| Thickness (Max) | - | Size / Dimension | 0.480" L x 0.098" W (12.20mm x 2.50mm) |
| Series | PolySwitch®, RGEF | Resistance - Post Trip (R1) (Max) | 17.5 mOhms |
| Resistance - Initial (Ri) (Min) | 5.6 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF3252-000 RGEF800-1HF |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.823" (20.90mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 8A Ih Through Hole Radial, Disc | Current - Trip (It) | 13.6A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 8A |
| Approvals | CSA, TUV, UL |
