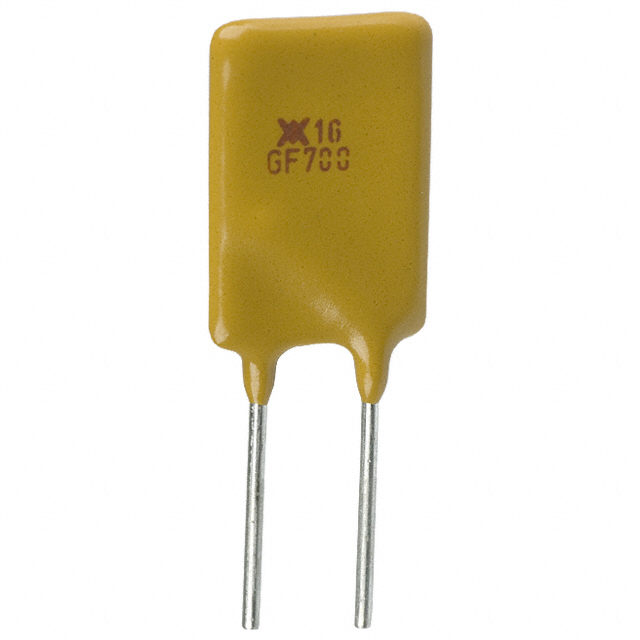

RGEF700-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGEF700-1 with confidence from Components-World.HK, 1 Year Warranty
Dowload RGEF700-1 Details in PDFSee Product Specifications for product details.
Buy RGEF700-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGEF700-1 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 7A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.263 | $0.257 | $0.249 | $0.209 | $0.174 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.158 | $0.134 | $0.118 | $0.107 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGEF700-1 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 7A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 178722 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRGEF700-1 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 3.5s |
| Thickness (Max) | - | Size / Dimension | 0.421" L x 0.098" W (10.70mm x 2.50mm) |
| Series | PolySwitch®, RGEF | Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Resistance - Initial (Ri) (Min) | 7.7 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF3247-000 RGEF700-1HF |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.776" (19.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 7A Ih Through Hole Radial, Disc | Current - Trip (It) | 11.9A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 7A |
| Approvals | CSA, TUV, UL |
