Home > Products > Circuit Protection > Gas Discharge Tube Arresters (GDT) > PMT809004F

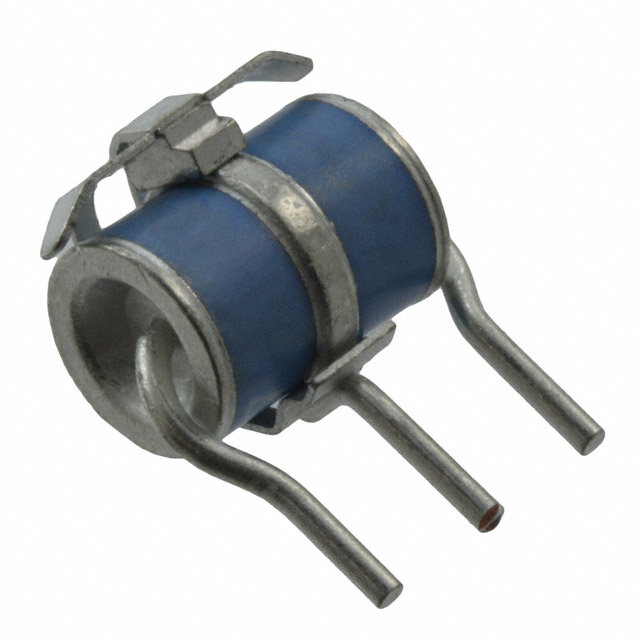

PMT809004F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMT809004F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMT809004F
Manufacturer	Hamlin / Littelfuse
Description	GDT 90V 20KA T/H FAIL SHORT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5487 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PMT809004F	Manufacturer	Hamlin / Littelfuse
Description	GDT 90V 20KA T/H FAIL SHORT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5487 pcs	Data sheet	SL1021,24A,B_PMT8 SERIES
Category	Circuit Protection	Voltage - DC Spark Over (Nom)	90V
Tolerance	-	Series	PMT8
Packaging	Tray	Package / Case	Axial Cylinder, 3 Lead (Radial Bend)
Other Names	F5422 PMT809004F-ND	Number of Poles	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impulse Discharge Current (8/20µs)	20000A (20kA)
Fail Short	Yes	Detailed Description	Gas Discharge Tube 90V 20000A (20kA) 3 Pole Through Hole
