MINISMDC075F-2

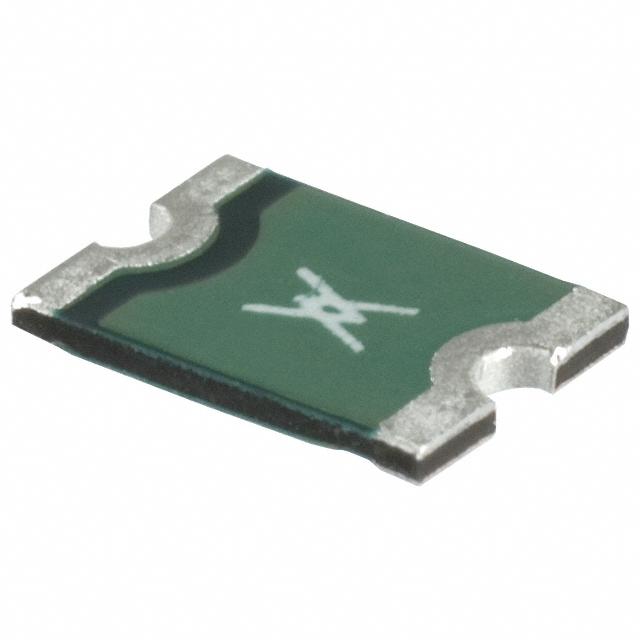

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MINISMDC075F-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload MINISMDC075F-2 Details in PDFSee Product Specifications for product details.
Buy MINISMDC075F-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MINISMDC075F-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 13.2V 750MA 1812 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.054 | $0.053 | $0.052 | $0.051 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MINISMDC075F-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 13.2V 750MA 1812 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 417245 pcs | Data sheet | miniSMDC075F SpecPolySwitch, SMD Catalog |
| Category | Circuit Protection | Voltage - Max | 13.2V |
| Type | Polymeric | Time to Trip | 200ms |
| Thickness (Max) | 0.024" (0.62mm) | Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Series | PolySwitch®, miniSMD | Resistance - Post Trip (R1) (Max) | 450 mOhms |
| Resistance - Initial (Ri) (Min) | 110 mOhms | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1812 (4532 Metric), Concave |
| Other Names | MINISMDC075F-2TR MINISMDC075F2 MINISMDC075FTR MINISMDC075FTR-ND RF1404-000 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 13.2V 750mA Ih Surface Mount 1812 (4532 Metric), Concave | Current - Trip (It) | 1.5A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 750mA |
| Approvals | CSA, TUV, UL |
