MG1275W-XBN2MM

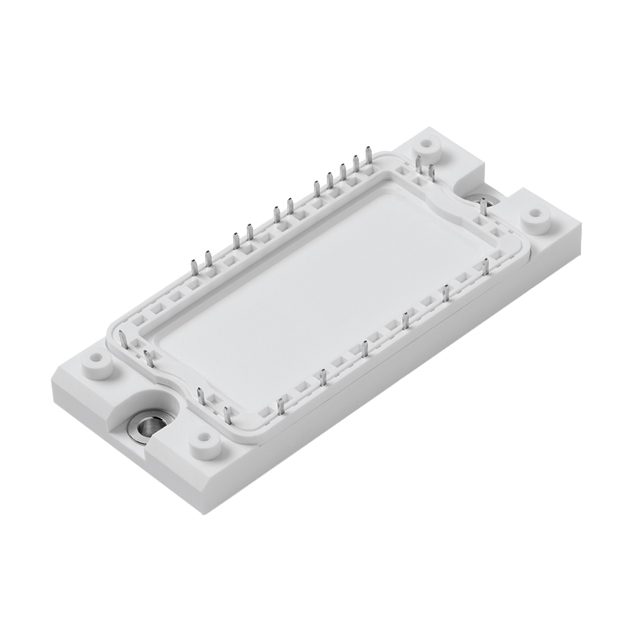

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MG1275W-XBN2MM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MG1275W-XBN2MM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MG1275W-XBN2MM |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | IGBT MOD 1200V 75A PKG W CRCT:XB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $47.673 | $44.558 | $43.00 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MG1275W-XBN2MM | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | IGBT MOD 1200V 75A PKG W CRCT:XB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 793 pcs | Data sheet | MG1275W-XBN2MM |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 75A | Supplier Device Package | Module |
| Series | - | Power - Max | 348W |
| Package / Case | Module | Other Names | F6705 MG1275W-XBN2MM-ND |
| Operating Temperature | -40°C ~ 125°C (TJ) | NTC Thermistor | Yes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 5.3nF @ 25V | Input | Three Phase Bridge Rectifier |
| IGBT Type | - | Detailed Description | IGBT Module Three Phase Inverter with Brake 1200V 105A 348W Chassis Mount Module |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 105A |
| Configuration | Three Phase Inverter with Brake |
