MG1275S-BA1MM

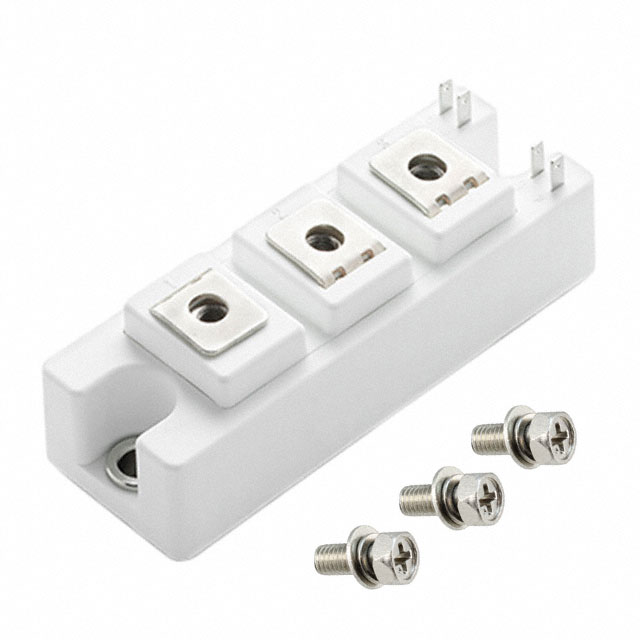

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MG1275S-BA1MM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MG1275S-BA1MM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MG1275S-BA1MM |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | IGBT 1200V 105A 630W PKG S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $23.907 | $22.501 | $21.094 | $20.11 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MG1275S-BA1MM | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | IGBT 1200V 105A 630W PKG S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1612 pcs | Data sheet | MG1275S-BA1MM |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 75A (Typ) | Supplier Device Package | S3 |
| Series | - | Power - Max | 630W |
| Package / Case | S-3 Module | Other Names | F6495 |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 5.52nF @ 25V | Input | Standard |
| IGBT Type | - | Detailed Description | IGBT Module Half Bridge 1200V 105A 630W Chassis Mount S3 |
| Current - Collector Cutoff (Max) | 500µA | Current - Collector (Ic) (Max) | 105A |
| Configuration | Half Bridge |
