AHRF1500

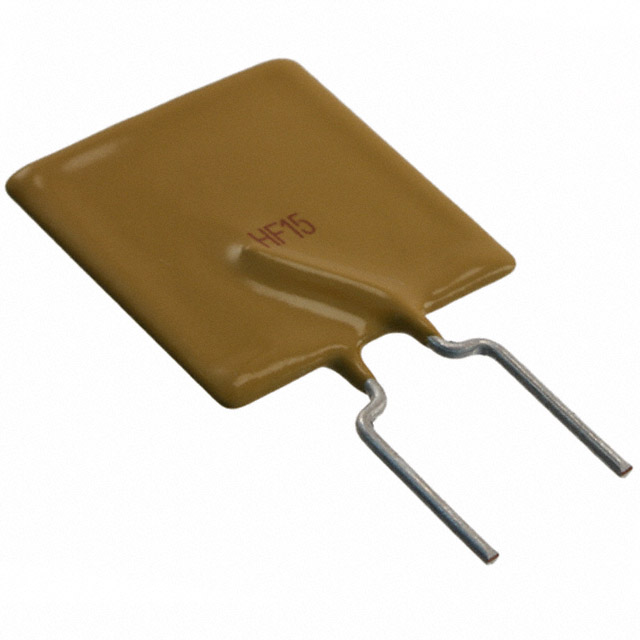

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHRF1500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHRF1500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHRF1500 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 15A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.594 | $0.565 | $0.537 | $0.433 | $0.367 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.358 | $0.301 | $0.268 | $0.235 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHRF1500 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 15A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97283 pcs | Data sheet | PolySwitch, Automotive CatalogAHRF1500 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 20s |
| Thickness (Max) | - | Size / Dimension | 0.925" L x 0.138" W (23.50mm x 3.50mm) |
| Series | PolySwitch®, AHRF | Resistance - Post Trip (R1) (Max) | 9.2 mOhms |
| Resistance - Initial (Ri) (Min) | 2.7 mOhms | Ratings | AEC-Q200 |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | AHRF1500HF RF3354-000 |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.130" (28.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 15A Ih Through Hole Radial, Disc | Current - Trip (It) | 33A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 15A |
| Approvals | - |
