Home > Products > Circuit Protection > PTC Resettable Fuses > AHRF1000-2

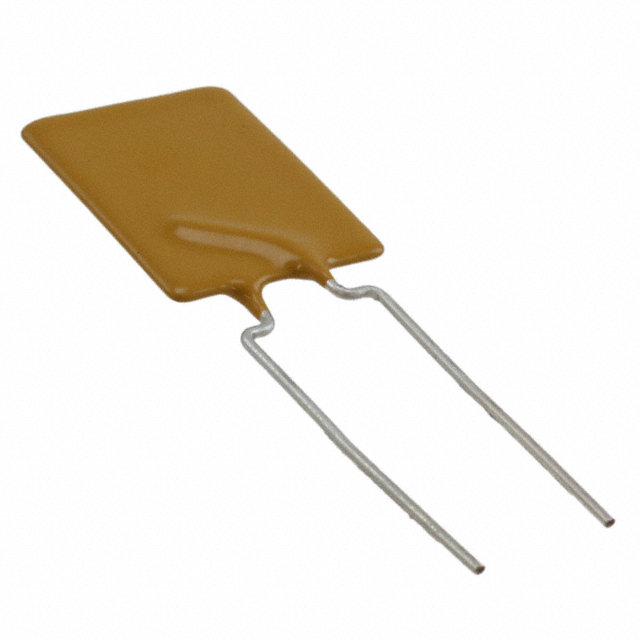

AHRF1000-2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHRF1000-2 with confidence from Components-World.HK, 1 Year Warranty

Dowload AHRF1000-2 Details in PDF

Request a Quote

Part Number	AHRF1000-2
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 16V 10A RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 85525 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.239

Product parameter
Data sheet

Product parameter

Part Number	AHRF1000-2	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 16V 10A RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85525 pcs	Data sheet	AHRF1000 Spec PolySwitch, Automotive Catalog
Category	Circuit Protection	Voltage - Max	16V
Type	Polymeric	Time to Trip	10.5s
Thickness (Max)	-	Size / Dimension	0.689" Dia x 0.118" T (17.50mm x 3.00mm)
Series	PolySwitch®, AHRF	Resistance - Post Trip (R1) (Max)	15 mOhms
Resistance - Initial (Ri) (Min)	5.1 mOhms	Ratings	AEC-Q200
Packaging	Tape & Reel (TR)	Package / Case	Radial, Disc
Other Names	AHRF1000-2-ND AHRF1000-2TR AHRF10002 AHRF1000TR AHRF1000TR-ND C15082-000	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Lead Spacing	0.400" (10.15mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.043" (26.50mm)	Detailed Description	Polymeric PTC Resettable Fuse 16V 10A Ih Through Hole Radial, Disc
Current - Trip (It)	20.5A	Current - Max	100A
Current - Hold (Ih) (Max)	10A	Approvals	-
