AHEF1000

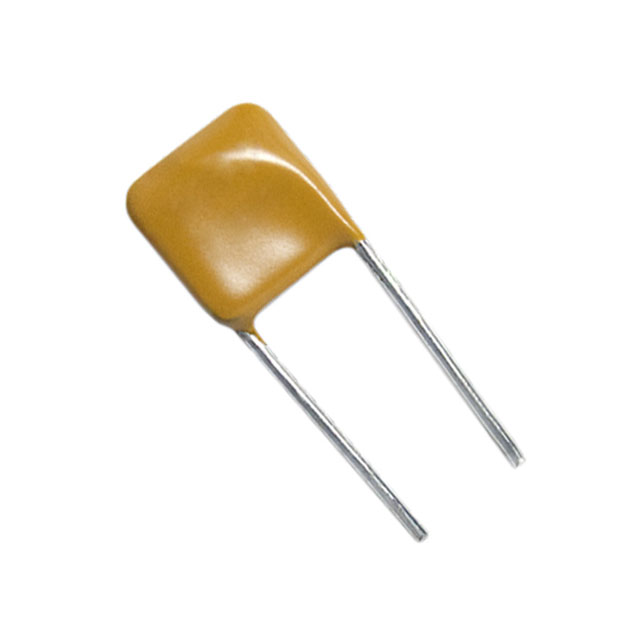

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHEF1000 with confidence from Components-World.HK, 1 Year Warranty
Dowload AHEF1000 Details in PDFSee Product Specifications for product details.
Buy AHEF1000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHEF1000 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 32V 10A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.45 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHEF1000 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 32V 10A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78526 pcs | Data sheet | AHEF1000 SpecPolySwitch, Automotive Catalog |
| Category | Circuit Protection | Voltage - Max | 32V |
| Type | Polymeric | Time to Trip | 15s |
| Thickness (Max) | - | Size / Dimension | 0.925" L x 0.157" W (23.50mm x 4.00mm) |
| Series | PolySwitch®, AHEF | Resistance - Post Trip (R1) (Max) | 16 mOhms |
| Resistance - Initial (Ri) (Min) | 6 mOhms | Ratings | AEC-Q200 |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | AHEF1000HF RF3360-000 |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 1.098" (27.90mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 32V 10A Ih Through Hole Radial, Disc | Current - Trip (It) | 20A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 10A |
| Approvals | - |
