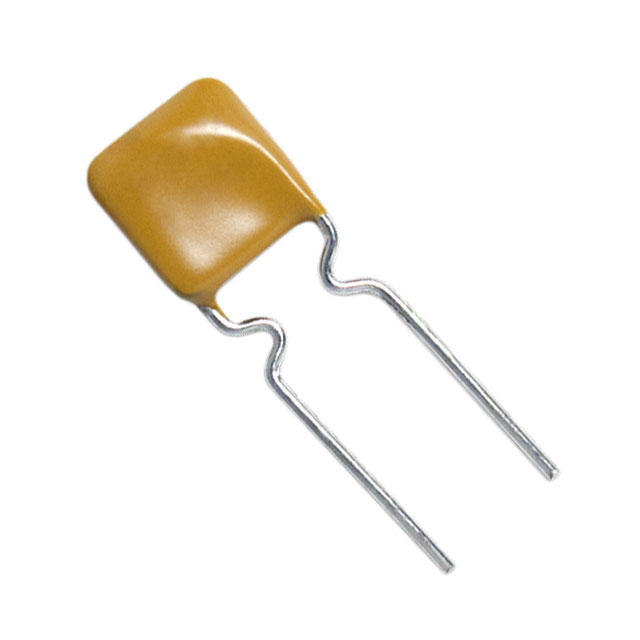

AHEF070
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHEF070 with confidence from Components-World.HK, 1 Year Warranty
Dowload AHEF070 Details in PDFSee Product Specifications for product details.
Buy AHEF070 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHEF070 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 32V 700MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.256 | $0.248 | $0.241 | $0.203 | $0.168 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.153 | $0.13 | $0.115 | $0.103 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHEF070 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 32V 700MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 212448 pcs | Data sheet | AHEF070 SpecPolySwitch, Automotive Catalog |
| Category | Circuit Protection | Voltage - Max | 32V |
| Type | Polymeric | Time to Trip | 3.2s |
| Thickness (Max) | - | Size / Dimension | 0.272" L x 0.118" W (6.90mm x 3.00mm) |
| Series | PolySwitch®, AHEF | Resistance - Post Trip (R1) (Max) | 800 mOhms |
| Resistance - Initial (Ri) (Min) | 230 mOhms | Ratings | AEC-Q200 |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | AHEF070HF RF3355-000 |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.118" (3.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.425" (10.80mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 32V 700mA Ih Through Hole Radial, Disc | Current - Trip (It) | 1.4A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 700mA |
| Approvals | - |
