09565515513

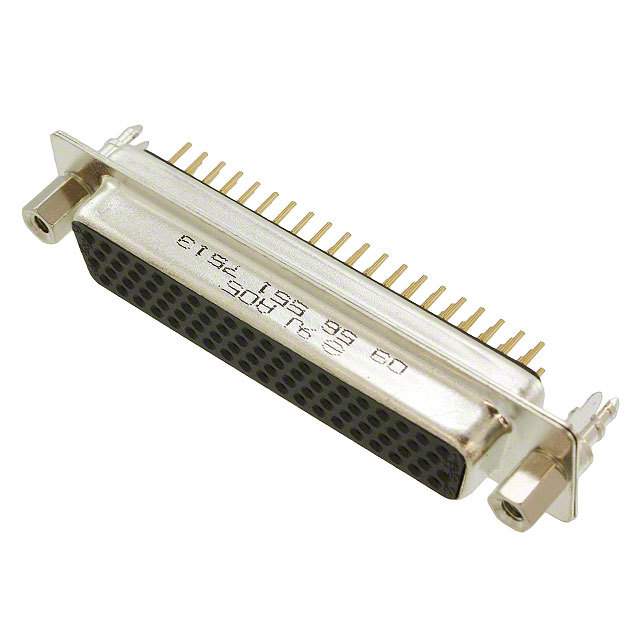

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09565515513 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09565515513 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09565515513 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB HD RCPT 78P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.811 | $6.147 | $5.889 | $5.521 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.337 | $5.043 | $4.896 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09565515513 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 78P VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7517 pcs | Data sheet | 0956551x513 DrawingDevice Connectivity Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 5 (DD, D) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Tray |
| Other Names | 09 56 551 5513 09565515513-ND 1195-4914 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 4 | Number of Positions | 78 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 78 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold or Gold-Palladium |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | - | Backset Spacing | - |
