Home > Products > Connectors, Interconnects > D-Sub, D-Shaped Connectors - Housings > 09565005601

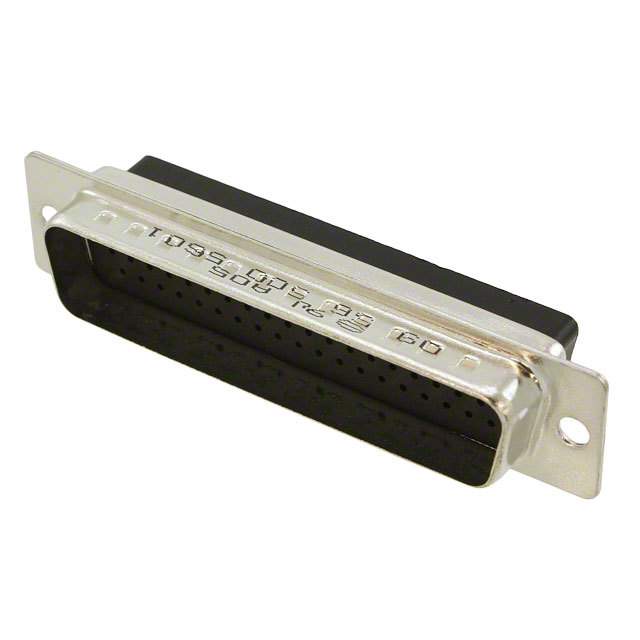

09565005601

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09565005601 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09565005601
Manufacturer	HARTING
Description	DSUB HD MA CRIMP SHELL 78P
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16045 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.923	$3.568	$3.479	$3.211
	$3.033	$2.765	$2.587	$2.373

Product parameter
Data sheet

Product parameter

Part Number	09565005601	Manufacturer	HARTING
Description	DSUB HD MA CRIMP SHELL 78P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16045 pcs	Data sheet	09565005601 Drawing
Category	Connectors, Interconnects	Shell Size, Connector Layout	5 (DD, D) High Density
Shell Material, Finish	Steel, Tin Plated	Shell Finish Thickness	-
Series	-	Packaging	Bulk
Other Names	1195-2342 9565005601	Operating Temperature	-55°C ~ 105°C
Number of Rows	4	Number of Positions	78
Note	Contacts Not Included	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Flange Feature	Housing/Shell (Unthreaded)
Features	Grounding Indents	Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Detailed Description	Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position	Contact Type	Signal
Connector Type	Plug for Male Contacts	Connector Style	D-Sub, High Density
Color	-
