Home > Products > Connectors, Interconnects > D-Sub, D-Shaped Connectors - Housings > 09563004701

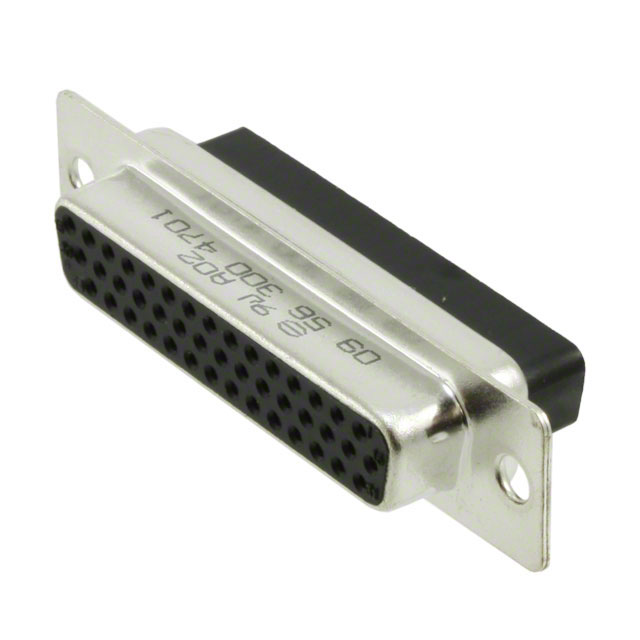

09563004701

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09563004701 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09563004701
Manufacturer	HARTING
Description	DSUB HD FE CRIMP SHELL 44P
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16376 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.276	$3.135	$2.85	$2.708
	$2.636	$2.351	$2.209	$1.952

Product parameter
Data sheet

Product parameter

Part Number	09563004701	Manufacturer	HARTING
Description	DSUB HD FE CRIMP SHELL 44P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16376 pcs	Data sheet	09563004701 Drawing
Category	Connectors, Interconnects	Shell Size, Connector Layout	3 (DB, B) High Density
Shell Material, Finish	Steel, Tin Plated	Shell Finish Thickness	-
Series	-	Packaging	Bulk
Other Names	1195-2319 9563004701	Operating Temperature	-55°C ~ 105°C
Number of Rows	3	Number of Positions	44
Note	Contacts Not Included	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Flange Feature	Housing/Shell (Unthreaded)
Features	-	Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Detailed Description	Receptacle for Female Contacts Housing D-Sub, High Density Connector 44 Position	Contact Type	Signal
Connector Type	Receptacle for Female Contacts	Connector Style	D-Sub, High Density
Color	-
