Home > Products > Connectors, Interconnects > D-Sub Connectors > 09562615700

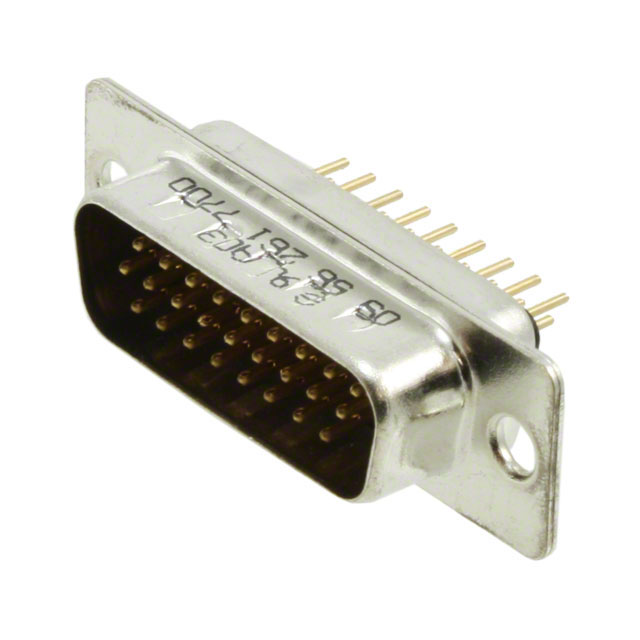

09562615700

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09562615700 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09562615700
Manufacturer	HARTING
Description	CONN DSUB HD PLUG 26P VERT SLDR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 35961 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.754	$1.682	$1.542	$1.472
	$1.402	$1.226	$1.191	$1.016

Product parameter
Data sheet

Product parameter

Part Number	09562615700	Manufacturer	HARTING
Description	CONN DSUB HD PLUG 26P VERT SLDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35961 pcs	Data sheet	0956261x700 Drawing
Category	Connectors, Interconnects	Wire Gauge	-
Voltage Rating	-	Termination	Solder
Shell Size, Connector Layout	2 (DA, A) High Density	Shell Material, Finish	Steel, Nickel Plated
Series	-	Packaging	Bulk
Other Names	09562615700-ND 1195-4893	Operating Temperature	-40°C ~ 85°C
Number of Rows	3	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Housing Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Flange Feature	Housing/Shell (Unthreaded)
Features	Grounding Indents	Detailed Description	26 Position D-Sub, High Density Plug, Male Pins Connector
Current Rating	2A	Contact Type	Signal
Contact Material	Copper Alloy	Contact Form	Stamped
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold or Gold-Palladium
Connector Type	Plug, Male Pins	Connector Style	D-Sub, High Density
Color	-	Backset Spacing	-
