09562005601

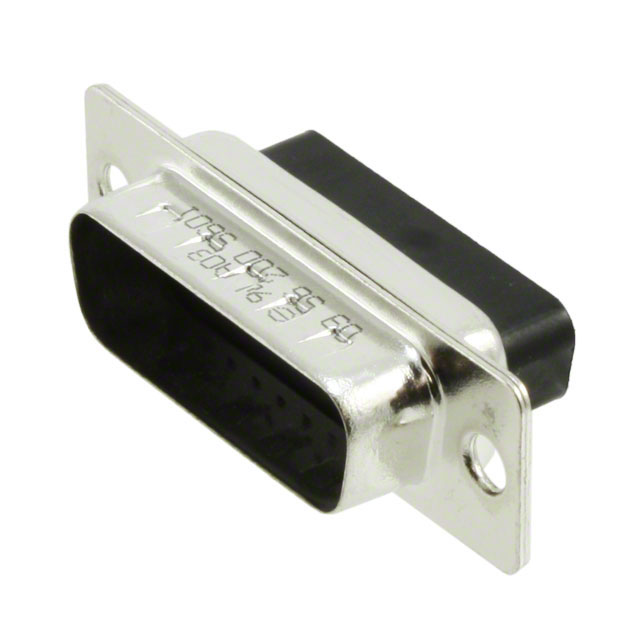

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09562005601 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09562005601 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09562005601 |
|---|---|
| Manufacturer | HARTING |
| Description | D SUB HD MA CRIMP SHELL 26P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.117 | $1.071 | $0.982 | $0.937 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $0.892 | $0.781 | $0.758 | $0.647 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09562005601 | Manufacturer | HARTING |
|---|---|---|---|
| Description | D SUB HD MA CRIMP SHELL 26P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59987 pcs | Data sheet | 09562005601 Drawing |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 2 (DA, A) High Density |
| Shell Material, Finish | Steel, Tin Plated | Shell Finish Thickness | - |
| Series | - | Packaging | Tray |
| Other Names | 1195-2310 9562005601 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 26 |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Detailed Description | Plug for Male Contacts Housing D-Sub, High Density Connector 26 Position | Contact Type | Signal |
| Connector Type | Plug for Male Contacts | Connector Style | D-Sub, High Density |
| Color | - |
