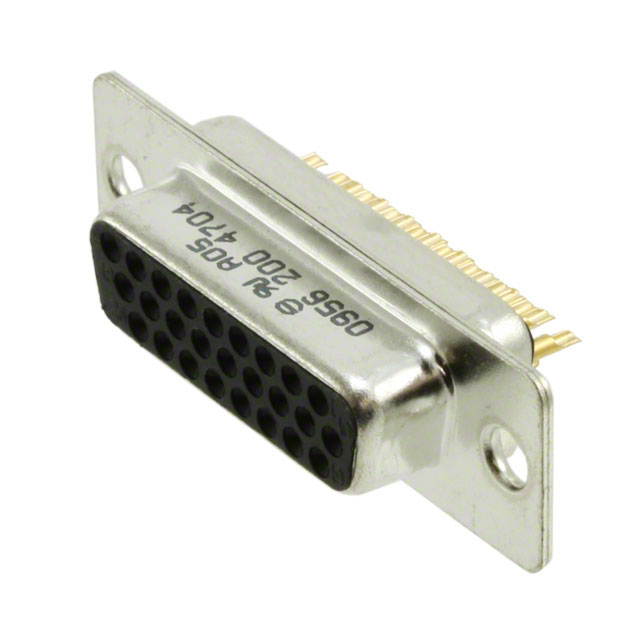

09562004704
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09562004704 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09562004704 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09562004704 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB HD RCPT 26POS STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.495 | $1.435 | $1.315 | $1.255 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.196 | $1.046 | $1.016 | $0.867 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09562004704 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 26POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42984 pcs | Data sheet | 09562004704 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2309 9562004704 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 3 | Number of Positions | 26 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
