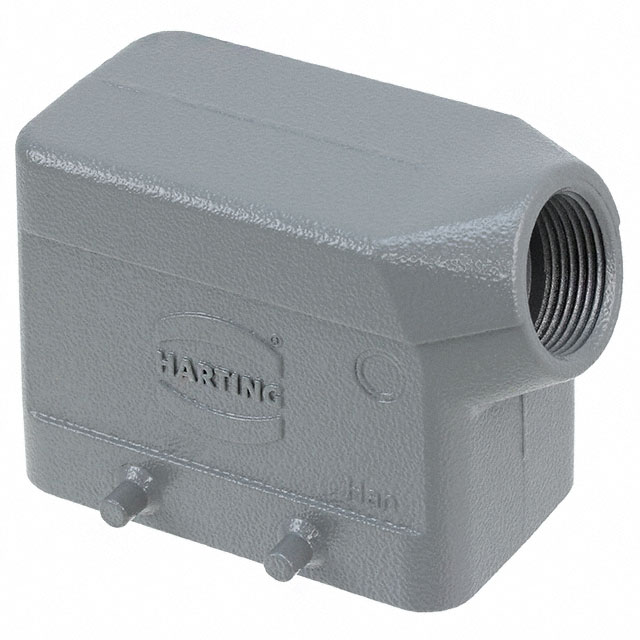

09340030501
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09340030501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09340030501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09340030501 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HOOD TOP ENTRY PG16 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.19 | $9.199 | $8.814 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.263 | $7.987 | $7.547 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09340030501 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HOOD TOP ENTRY PG16 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4167 pcs | Data sheet | 09340030501 Drawing |
| Category | Connectors, Interconnects | Thread Size | PG16 |
| Style | Side Entry | Size / Dimension | 2.874" L x 1.693" W x 2.244" H (73.00mm x 43.00mm x 57.00mm) |
| Size | - | Series | Han® Hv E |
| Packaging | Bulk | Other Names | 09340030501-ND 1195-4787 Q7464598 |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lock Location | Locking Clip (2) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Housing Finish | - |
| Housing Color | - | Features | - |
| Connector Type | Hood |
