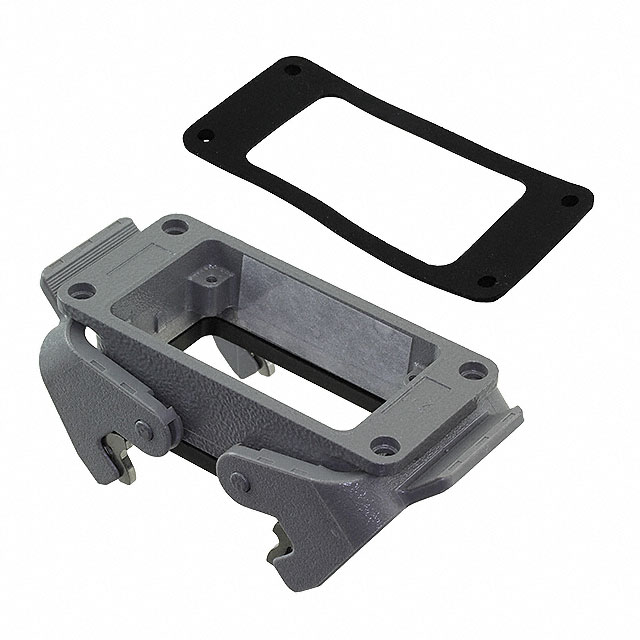

09340030301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09340030301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09340030301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09340030301 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN BASE BOTTOM ENTRY SZ10B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $13.139 | $11.861 | $11.364 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.653 | $10.298 | $9.73 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09340030301 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN BASE BOTTOM ENTRY SZ10B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3715 pcs | Data sheet | Han Hv ES/Hv E Hoods/Housings09340030301 Drawing |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 3.661" L x 1.709" W x 1.138" H (93.00mm x 43.40mm x 28.90mm) |
| Size | 10B | Series | Han® Hv E |
| Packaging | Bulk | Other Names | 09340030301-ND 1195-4786 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lock Location | Locking Clip (2) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum, Die Cast | Housing Finish | Powder Coated |
| Housing Color | - | Features | - |
| Connector Type | Base - Panel Mount |
