09150000421

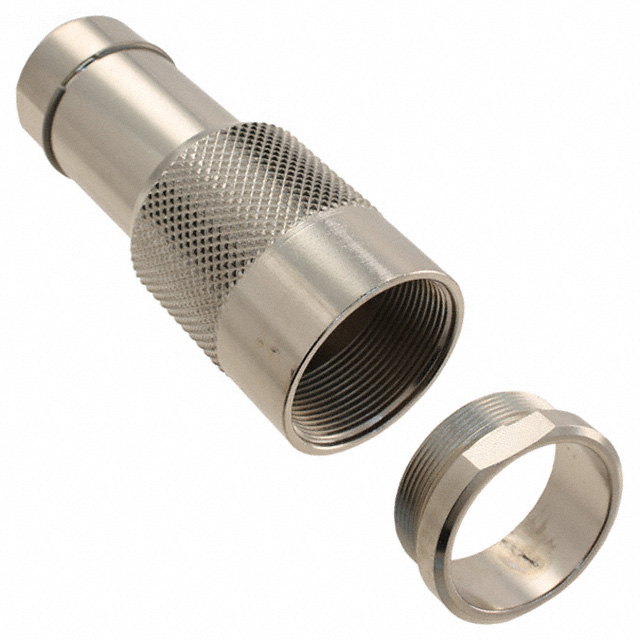

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09150000421 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09150000421 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09150000421 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN INSERT SHELL INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.454 | $11.243 | $10.772 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.099 | $9.762 | $9.224 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09150000421 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN INSERT SHELL INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3220 pcs | Data sheet | 09150000421 Drawing |
| Category | Connectors, Interconnects | Type | - |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Zinc Die Cast |
| Shell Finish | - | Series | R 15 |
| Packaging | Bulk | Other Names | 1195-1558 9150000421 |
| Orientation | - | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | - | Note | Contacts Not Included; Insert Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Coupling Nut, Strain Relief | Fastening Type | Threaded |
| Detailed Description | Circular Connector Insert Shell Free Hanging (In-Line) Backshell, Coupling Nut, Strain Relief | Coupling Nut Material, Plating | Zinc Die Cast |
| Coupling Nut Diameter | 1.102" (27.99mm) | Contact Type | - |
| Contact Size | - | Contact Shape | - |
| Connector Type | Insert Shell |
